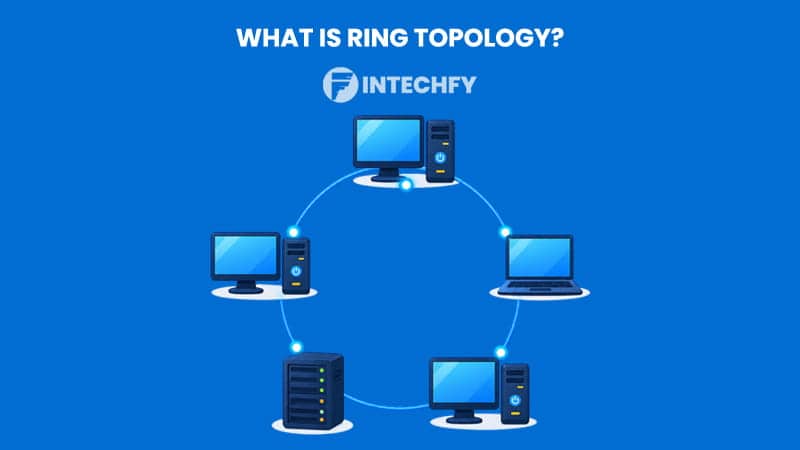

What Is Ring Topology?
Many beginners searching for “what is ring topology” want to understand how circular communication works between connected devices. This network structure organizes nodes in a closed loop where each device communicates directly with its nearest neighboring systems. Information moves sequentially around the infrastructure until it reaches the correct destination.
A ring-based communication structure does not rely on one central hub or switch to regulate traffic. Every connected device participates in forwarding packets to the next node in the sequence. This arrangement creates a circular network topology where traffic follows an organized communication path across the infrastructure.
According to IBM, ring topology connects devices in a circular structure where data travels sequentially between neighboring nodes for efficient communication.
Sequential data transfer remains one of the defining characteristics of this design. Packets move through the environment in a fixed direction, creating organized traffic flow between connected systems. Some deployments support one-way communication, while others use dual-loop configurations for additional stability.
How Devices Connect in a Circular Structure
Each node maintains a direct connection with two neighboring devices. One connection receives incoming traffic, while the other forwards outgoing packets to the next device in the loop.
This setup creates continuous node-to-node communication across the infrastructure. Traffic keeps circulating between connected systems until packets arrive at the intended destination.
Why Ring Topology Uses Sequential Communication
Communication order plays a major role in this computer network topology. Devices do not compete randomly for network access. Traffic follows a structured sequence that regulates packet movement throughout the infrastructure.
This organized transmission model lowers packet collisions and creates more predictable traffic behavior during continuous communication.
How Ring Topology Works
The communication process follows a strict sequence across connected nodes. Packets move from one device to the next around the circular structure until the destination system receives the information. Every connected node participates in forwarding traffic across the infrastructure.
Directional communication keeps packet movement organized throughout the environment. Some deployments use one-way transmission, while others support bidirectional traffic through dual-loop communication structures.
| Step | How Ring Topology Works | Main Purpose |
|---|---|---|
| 1 | Devices connect in a circular structure | Creates sequential communication |
| 2 | A token moves around the network | Controls transmission permission |
| 3 | A node receives the token | Gains the right to send data |
| 4 | Data packets move to neighboring nodes | Maintains organized communication |
| 5 | Nodes forward data sequentially | Ensures packet delivery |
| 6 | Data reaches the destination device | Completes transmission |
| 7 | The token continues circulating | Allows other nodes to communicate |
| 8 | Failed nodes interrupt the loop | Shows dependency risk in ring networks |
Data Transmission Between Network Nodes
Data transmission in ring topology follows a structured forwarding sequence. A device sends packets to its nearest connected node, which then forwards the traffic to the next device in the loop.
This node-to-node transmission model creates organized packet movement across the infrastructure. Neighboring devices continuously forward traffic until information reaches the correct destination system.
Sequential packet transfer also removes much of the communication disorder commonly found in unrestricted transmission environments.
Understanding Token Passing in Ring Topology
Token passing in ring topology determines which device can transmit data at a given moment. A small control packet called a token continuously circulates around the infrastructure.
Devices must receive the token before sending information. After transmission finishes, the token moves to the next node in the communication sequence. This permission-based communication process prevents multiple devices from transmitting simultaneously.
According to Cisco, token-passing networks only allow devices holding the token to transmit data, helping reduce network collisions in ring topology environments.
Collision prevention becomes far easier because communication follows a regulated order rather than unrestricted simultaneous transmission between connected systems.
What Happens When One Node Fails
One failed device can interrupt the entire communication loop in traditional deployments. Since traffic moves sequentially between neighboring systems, a broken connection may stop packet forwarding across the infrastructure.
This dependency issue became one of the largest weaknesses in early implementations. Many industrial systems now reduce this risk through dual-ring communication structures that maintain a secondary loop when the primary communication path fails.

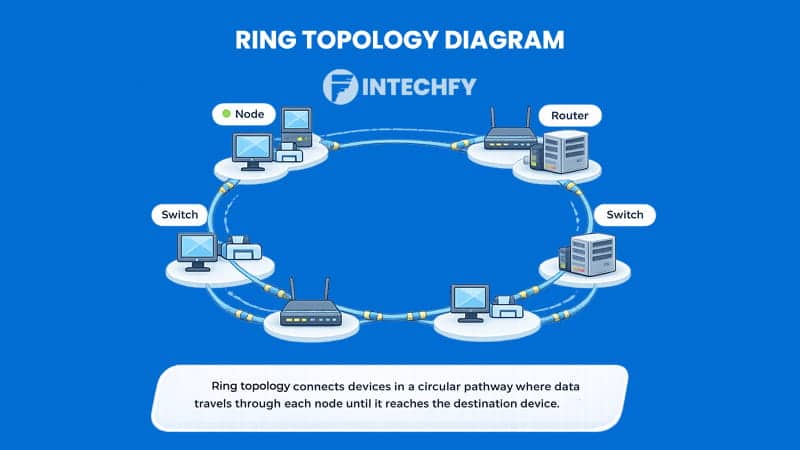

Ring Topology Diagram Explained
A network diagram makes circular communication much easier to understand because the traffic sequence becomes visible immediately. Connected devices form a closed communication loop where packets move from one node to the next in an organized direction. This visual structure also helps explain how token passing regulates transmission order between connected systems.
In most diagrams, every device connects directly to two neighboring nodes. One side receives incoming traffic, while the other forwards outgoing packets through the communication loop. Sequential forwarding continues until the information reaches the intended destination device.
Basic Ring Topology Diagram
A single-ring diagram usually appears clean and symmetrical because every connected device follows the same communication structure. Traffic moves through one continuous loop, creating highly organized packet flow across the infrastructure.
This layout highlights one of the most important characteristics of Ring Topology: structured communication. Devices do not transmit information randomly across the environment. Instead, packets move sequentially between neighboring systems following a regulated communication order.
Token-controlled transmission also becomes easier to visualize in this structure. A token circulates continuously around the loop, granting transmission permission to connected devices one at a time. This process helps reduce packet collisions during active communication.
Dual Ring Diagram
Dual-ring layouts appear more complex because the infrastructure maintains two communication loops instead of one. The primary loop handles normal traffic flow, while the secondary loop acts as a backup communication path during failures.
Industrial systems and fiber-based communication environments often use this arrangement because uninterrupted traffic flow remains critical during operational workloads. If one communication path becomes unavailable, the secondary loop can continue forwarding packets across the infrastructure.
This backup communication structure improves operational stability and reduces disruption risks in environments requiring continuous data transmission.
| Diagram Type | Communication Flow | Reliability |
|---|---|---|
| Single Ring | One communication loop | Moderate |
| Dual Ring | Primary + backup loop | Higher |

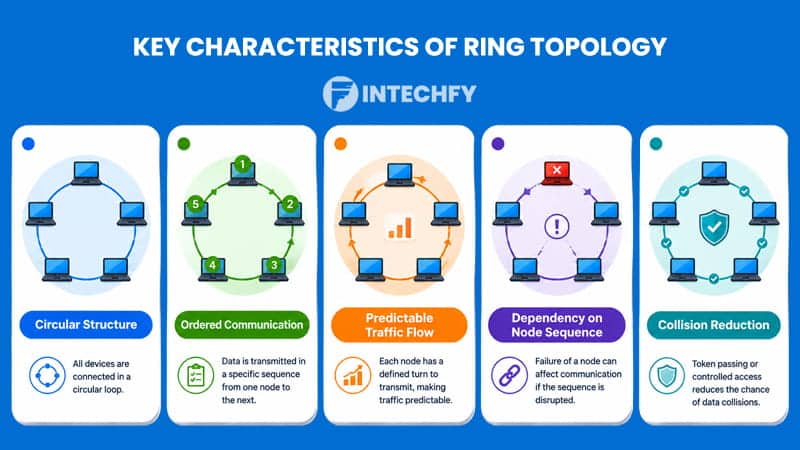

Key Characteristics of Ring Topology
Several features distinguish this communication model from other networking structures used in modern environments. The key characteristics of ring topology include circular communication, organized traffic flow, predictable transmission behavior, node dependency, and collision reduction.
| Characteristic | Description |
|---|---|
| Circular Structure | Devices form a closed loop communication path |
| Token Passing | Controls which device can transmit data |
| Sequential Data Flow | Traffic moves in an organized directional sequence |
| Collision Reduction | Regulated transmission lowers packet collision risks |
| Node Dependency | A failed connection can interrupt communication flow |
Circular Data Transmission
Traffic moves through a closed-loop network where connected devices forward packets sequentially to the next neighboring node. This circular communication structure creates consistent traffic direction across the infrastructure.
Sequential forwarding also makes packet movement easier to monitor during normal network operation.
Organized Communication Flow
Communication order remains tightly regulated throughout the environment. Devices transmit information based on sequential communication rules instead of competing simultaneously for access.
This structured communication model creates more predictable traffic behavior, especially in environments requiring stable transmission timing.
Reduced Data Collision
Collision reduction remains one of the strongest advantages of this design. Token-controlled transmission regulates which device can send data at a given moment, reducing the risk of overlapping transmissions between connected systems.
This communication method creates cleaner traffic flow and supports more stable data exchange across the infrastructure.
Components of Ring Topology
Networking devices inside a circular communication environment work together through continuous node-to-node transmission paths. Every connected device receives incoming traffic, processes the information, and forwards packets to the next node in the sequence. This communication method keeps data moving through the infrastructure in an organized direction rather than allowing unrestricted traffic movement between devices.
This network arrangement depends heavily on stable communication links because every node participates in maintaining packet flow across the environment.
Enterprise systems, industrial communication networks, and fiber-based infrastructures often rely on this arrangement when predictable transmission behavior becomes more important than flexible routing.
Continuous communication paths also help maintain structured traffic flow between interconnected systems operating inside the closed-loop environment.
Core Devices in a Ring Network
- Nodes: Devices connected within the ring structure that send, receive, and forward data sequentially.
- Network Interface Cards (NICs): Enable devices to connect and communicate within the ring network environment.
- Switches: Manage communication flow and improve data transmission efficiency in modern ring networks.
- Routers: Direct traffic between interconnected network segments and external communication systems.
Wired Communication Components
- Cables: Create physical communication links between connected nodes in the circular network structure.
- Fiber Optic Cables: Support high-speed data transmission and stable communication in enterprise ring networks.
- Communication Channels: Carry sequential data traffic between devices through organized transmission paths.

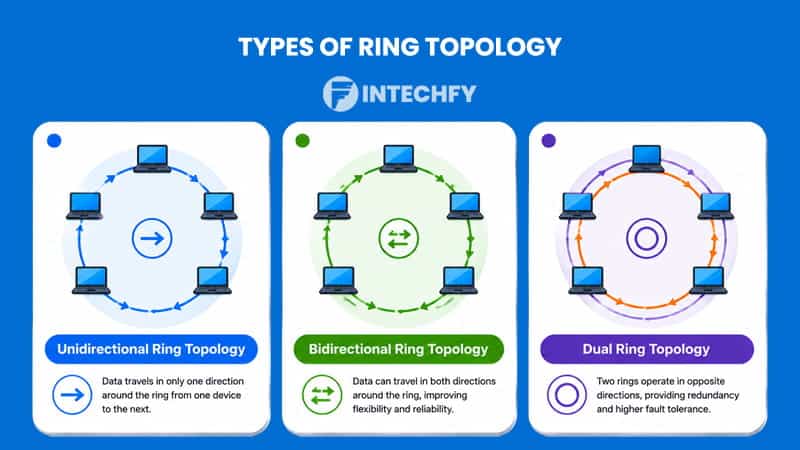

Types of Ring Topology
Different communication environments require different traffic management structures. The most common types of ring topology include single-direction communication loops, two-way transmission structures, and dual-loop communication environments. Each design controls traffic flow differently depending on communication reliability requirements, infrastructure complexity, and fault management priorities.
Some deployments prioritize simplicity and lower infrastructure cost, while others focus more heavily on reliability and communication continuity during failures.
Unidirectional Ring Topology
In a unidirectional ring topology, traffic moves through the infrastructure in only one direction. Every device forwards packets to the next neighboring node following the same transmission path.
This arrangement creates a simpler communication structure because traffic flow remains predictable and tightly organized. Smaller environments often use this approach when infrastructure simplicity matters more than advanced fault management.
The downside appears during connection failures. Since traffic only moves through one transmission path, a broken node or damaged communication link may interrupt the entire communication sequence.
Bidirectional Ring Topology
Bidirectional ring topology environments support packet movement in two directions instead of relying on one fixed transmission route. Connected devices can forward packets clockwise or counterclockwise across the communication loop.
This arrangement improves communication flexibility and fault management because traffic can move around damaged sections of the infrastructure more effectively. Packet delivery may continue even when one transmission direction becomes unavailable.
Two-way communication also improves operational stability in larger networking environments where uninterrupted traffic flow remains important.
Dual Ring Topology
Some infrastructures use dual ring topology environments that operate with two separate communication loops simultaneously. One loop normally handles active traffic, while the second loop functions as a backup transmission path during communication failures.
This arrangement creates stronger reliability compared to traditional single-loop deployments. Industrial systems, enterprise communication environments, and fiber-based infrastructures frequently depend on this structure when stable transmission becomes critical.
Many industrial networking systems prefer dual-loop communication because downtime can interrupt automation processes, monitoring systems, and operational control infrastructure.
| Type | Data Flow | Reliability | Complexity |
|---|---|---|---|
| Unidirectional | One direction | Moderate | Low |
| Bidirectional | Two directions | Higher | Medium |
| Dual Ring | Dual loop | Very high | High |
Advantages of Ring Topology
Structured communication remains one of the biggest reasons organizations continue using this architecture in controlled networking environments. Traffic moves through an organized sequence, reducing communication disorder and creating more predictable transmission behavior between connected systems.
This communication model also gives every connected device equal access to the infrastructure instead of allowing uncontrolled simultaneous transmission requests.
Reduced Data Collision
One of the strongest operational advantages involves collision reduction. Devices cannot transmit data randomly across the infrastructure because token-controlled communication regulates transmission order.
This explains why ring topology reduces collisions more effectively than some unrestricted communication environments. Sequential traffic flow limits overlapping transmissions between connected systems.
Organized packet movement also reduces communication congestion during continuous data exchange.
Consistent Communication Performance
Predictable traffic flow creates more stable communication timing across the infrastructure. Since devices follow a regulated transmission sequence, packet movement remains easier to monitor during normal operation.
Industrial communication systems, enterprise environments, and fiber-based infrastructures often depend on this structured communication approach because timing consistency matters during continuous data transfer.
Stable packet forwarding also improves communication predictability in environments handling repetitive traffic patterns.
Better Traffic Management
Traffic management becomes more organized because connected devices follow established communication order rather than competing simultaneously for network access.
This arrangement creates cleaner packet flow throughout the infrastructure and reduces communication confusion during high-traffic conditions. Structured transmission behavior also helps maintain more controlled data movement between connected systems.
Disadvantages of Ring Topology
Structured communication provides stability, though several operational weaknesses still affect this design. The biggest trade-offs commonly involve single-point dependency, expansion difficulty, troubleshooting complexity, and network downtime risks during failures.
Large communication environments may require additional infrastructure planning to reduce disruption risks inside the transmission loop.
Network Failure Risks
One failed device can interrupt communication across the entire infrastructure. Since packets move sequentially between neighboring systems, a damaged node or broken communication link may stop traffic flow completely.
Questions about what happens if one node fails usually point to this dependency problem. Traditional single-loop deployments remain vulnerable to communication interruption when one section of the infrastructure becomes unavailable.
Modern industrial systems often reduce this risk through secondary communication loops or backup transmission paths.
Difficult Maintenance and Expansion
Infrastructure troubleshooting becomes more difficult as environments grow larger. Administrators may need to inspect multiple communication points to identify damaged connections or transmission interruptions.
Adding new devices can also interrupt communication because the loop structure normally requires temporary disconnection during installation.
Large environments with continuous communication demands may experience operational disruption during infrastructure modifications.
Dependency on Continuous Communication
Continuous packet forwarding remains essential inside this communication structure. Every node participates in maintaining transmission flow across the environment.
Network downtime can spread quickly when communication stops at one point in the sequence. This dependency creates operational challenges in environments requiring uninterrupted communication across all connected systems.
Common Applications of Ring Topology
Structured communication remains valuable in environments where traffic timing, organized transmission flow, and predictable packet delivery matter more than flexible routing. That is why the common applications of ring topology still extend across industrial systems, telecommunications infrastructure, fiber optic communication environments, and specialized LAN deployments.
This communication model became especially popular in systems requiring controlled packet movement and consistent transmission timing. Sequential traffic flow also made network behavior easier to monitor in environments handling repetitive or continuous communication workloads.
Ring Topology in Industrial Networks
Industrial control systems often depend on stable communication between monitoring devices, automation equipment, controllers, and operational infrastructure. Packet disorder or transmission collisions can interrupt manufacturing processes or delay system responses.
Many industrial environments use structured communication loops because traffic moves in an organized sequence between connected devices. This arrangement improves transmission predictability and helps maintain operational consistency during continuous machine-to-machine communication.
A common ring topology example in real life can be found in factory automation systems where industrial controllers exchange data through closed-loop communication structures. Some power distribution systems and transportation infrastructure also use this arrangement to maintain stable operational communication.
Telecommunications and Fiber Networks
Telecommunications infrastructure frequently relies on fiber-based communication systems where continuous traffic flow remains critical. Many large-scale communication providers use circular transmission structures to support long-distance traffic movement across interconnected systems.
FDDI became one of the best-known examples of this approach in fiber optic communication environments. FDDI used dual communication loops to improve reliability and maintain packet transmission during infrastructure failures.
Fiber optic deployments often benefit from structured traffic movement because organized transmission timing reduces communication disruption across large networking environments.
Some telecommunications network infrastructures also use circular transmission paths to support stable communication between distributed operational systems.
Legacy and Modern Use Cases
Older LAN environments commonly relied on ring topology for LAN communication because token-controlled transmission reduced collision risks inside busy communication environments.
Modern deployments are more selective, though structured communication still remains valuable in industrial automation, transportation systems, utility infrastructure, and fiber-based networking environments where predictable traffic behavior matters more than flexible scalability.
Why Ring Topology Still Matters in Networking
Many modern infrastructures now use highly flexible communication models with dynamic routing and decentralized traffic flow. Even so, structured transmission systems still maintain an important role in several networking environments.
The reason ring topology is still used often comes down to communication order, predictable packet delivery, collision prevention, and operational stability during continuous transmission workloads.
Efficient Sequential Communication
Sequential traffic movement creates highly organized communication behavior across connected systems. Devices follow a regulated transmission sequence rather than competing simultaneously for network access.
This structured network communication approach reduces transmission disorder and creates more predictable traffic timing across the infrastructure. Controlled packet movement also improves network efficiency in environments handling repetitive communication patterns.
Token-based transmission further strengthens communication order by regulating which device can transmit information at a given moment.
Modern Industrial Networking Relevance
Industrial systems still depend heavily on communication reliability and operational consistency. Manufacturing environments, automation infrastructure, transportation systems, and utility networks often prioritize predictable transmission behavior over flexible routing complexity.
Ring topology performance remains valuable in these environments because traffic flow stays organized even during continuous communication activity. Fiber-based industrial deployments and dual-loop communication systems also continue supporting critical operational infrastructure worldwide.
Comparing Ring Topology With Other Communication Structures
Different network topology types organize communication in very different ways. Traffic handling, scalability, reliability, and collision management often depend on the underlying communication structure.
- Bus topology: Bus systems rely on one shared communication line, while circular transmission structures move packets sequentially between neighboring devices. Collision handling remains more organized in closed-loop environments.
- Star topology: Star deployments depend heavily on a central hub or switch. Circular communication environments distribute packet forwarding responsibilities across connected nodes instead of one centralized device.
- Mesh topology: Mesh infrastructures focus heavily on redundancy and alternate routing paths. Sequential communication environments prioritize organized traffic flow and collision prevention instead of distributed routing flexibility.
- Tree topology: Tree-based systems support hierarchical communication layers, while closed-loop communication structures maintain continuous packet forwarding between neighboring systems.
- Hybrid topology: Hybrid deployments combine several communication models together. Sequential communication structures maintain more predictable traffic order through regulated packet movement.
- Point-to-point topology: Point-to-point communication connects only two devices directly. Circular transmission environments support broader communication flow across multiple interconnected systems.
Conclusion
Ring Topology continues holding an important place in networking environments where structured communication and predictable traffic flow remain critical. Sequential packet movement, organized transmission behavior, and token-controlled communication create stable traffic management across connected systems.
Token passing also plays a major role in reducing communication collisions inside busy networking environments. Devices transmit data in an organized sequence rather than competing simultaneously for access, creating cleaner and more controlled packet movement.
Modern industrial systems, fiber optic infrastructure, telecommunications environments, and specialized communication networks still depend on this design when operational consistency matters more than flexible routing complexity.
Although newer communication models now dominate many enterprise environments, structured transmission systems continue proving valuable in industries that require reliable timing, controlled traffic flow, and predictable communication behavior.
FAQs About Ring Topology
What is ring topology in computer networking?
Ring topology is a communication structure where connected devices form a closed loop. Data moves sequentially between neighboring nodes until it reaches the intended destination.
Why does ring topology use token passing?
Token passing controls which device can transmit data at a given moment. This process reduces packet collisions and keeps communication organized.
What are the advantages of ring topology?
Major advantages include structured communication, predictable traffic flow, collision reduction, and equal communication access between connected devices.
What happens if one node fails in ring topology?
A failed node can interrupt communication across the entire loop in traditional single-ring deployments. Dual-loop systems reduce this risk by maintaining backup communication paths.
Is ring topology still used today?
Yes. Industrial systems, telecommunications infrastructure, transportation networks, and fiber optic communication environments still use this communication structure in specific operational scenarios.
