A slow or unstable system often has nothing to do with hardware. In many cases, the real issue lies in the network topology used inside a computer network. Devices may be connected properly, yet performance still drops. The problem usually comes from how those connections are arranged.
Many people working in computer networking focus on setup and configuration. They install routers, connect switches, and make sure devices can communicate. That part is visible and easy to understand. The structure behind it is often ignored.
Network topology defines how devices and links are organized within a network. It controls how data moves, which paths are used, and how efficiently communication happens. This structure can be physical, such as cables, or logical, such as data flow patterns. Both play a role in how the system behaves under load.
A weak layout forces data to take longer routes. A better one keeps communication direct and predictable. That difference becomes more noticeable as the system grows. Small changes in structure can lead to very different results in how a network performs.

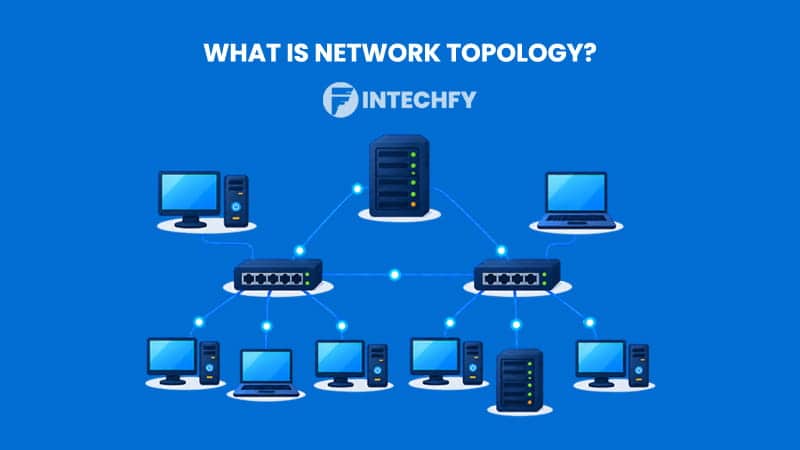

What Is Network Topology?
Network topology is the layout that defines how devices are connected and how data moves across a system. It describes the arrangement of nodes and links inside a computer network, shaping the path that information takes from one point to another. This structure can be seen physically through cables and devices, or logically through communication paths. Each design affects how fast, stable, and reliable the network becomes.
A network is built from several core elements. Nodes act as endpoints, including computers, servers, printers, and other connected devices. Links connect those nodes using wired or wireless connections. The way these elements are arranged forms a complete communication structure. That structure determines whether data moves directly, takes multiple hops, or faces delays along the way.
Different layouts serve different needs. Some designs prioritize simplicity and low cost. Others focus on performance and fault tolerance. The choice of network topology often depends on how large the system is and how critical its performance needs to be. Even small changes in arrangement can affect how efficiently data is delivered.
Physical vs Logical Topology
Physical topology shows how devices and cables are actually arranged in a space. It reflects the visible layout, such as whether devices connect to a central switch or follow a linear path. This view is useful when installing hardware or diagnosing physical issues.
Logical topology focuses on how data moves through the system. It describes communication paths, regardless of how the hardware is arranged. A network can appear as one structure physically but behave differently when data flows through it. This is where the idea of physical vs logical topology becomes relevant.
Physical design helps with setup and maintenance. Logical design helps explain performance and communication behavior. Both need to align to keep the system efficient.
Network Topology in Computer Networks
Within a computer network, structure plays a direct role in how devices interact. It defines how information is shared and how traffic is managed. A well-planned layout reduces congestion and keeps communication predictable. Poor design can lead to delays and unstable connections.
In computer networking, the role of the network structure becomes more important as systems grow. Small setups may work fine with simple designs. Larger environments require more careful planning to handle traffic and maintain reliability.
How Network Topology Works (Core Mechanics Explained)
Devices exchange data through paths defined by the network structure. The arrangement of connections decides where packets go, how many hops they take, and how fast they arrive. In a well-planned setup, routes are clear and predictable. In a weak layout, traffic circles around and delays stack up.
Every network follows a simple pattern. Data is created, sent across links, routed through intermediate devices, and delivered to the destination. The details depend on the design, but the flow stays consistent. That is why network topology has a direct effect on speed and stability.
Basic Components of Network Topology
A working system relies on a few essential pieces:
- Nodes (devices) — endpoints such as computers, servers, printers
- Links (wired/wireless) — cables or radio signals connecting devices
- Switches — move data within a local segment
- Routers — choose paths between different networks
- Hubs — forward traffic to multiple devices without filtering
These components form the backbone of any network topology. Their placement shapes how efficiently communication happens. A clear layout reduces unnecessary hops. A messy layout increases them.
How Data Flows in a Network Topology
Data moves in small units across defined paths. The structure determines how those paths are selected:
- Communication paths — routes connecting source and destination
- Data packets — information split into smaller pieces for transmission
- Routing decisions — selecting the best available path
The term data flow refers to this movement from one node to another. Efficient paths keep traffic smooth. Poor routing creates congestion and slows the entire system.
The network structure also affects how failures are handled. Some layouts provide alternate routes when a link goes down. Others rely on a single path, which increases risk. These differences come directly from the chosen network topology.

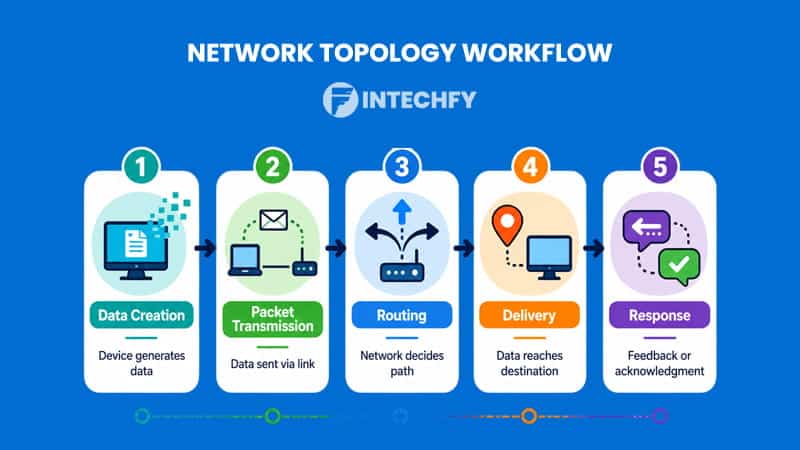

Network Topology Workflow (Step-by-Step)
| Step | Process | Description |
|---|---|---|
| 1 | Data Creation | Device generates data |
| 2 | Packet Transmission | Data sent via link |
| 3 | Routing | Network decides path |
| 4 | Delivery | Data reaches destination |
| 5 | Response | Feedback or acknowledgment |
Each step follows a clear sequence. A device creates data and sends it through a link. The system then selects a route based on the current network structure. After delivery, a response confirms whether the transmission succeeded.
Key Insight
The structure of a system determines how data travels from start to finish. A strong network topology creates direct paths and stable communication. A weak design forces data through inefficient routes, which increases delay and failure risk.
Why Network Topology Matters in Modern Networking
A network can have powerful hardware and still perform poorly. Slow responses, unstable connections, and unexpected downtime often come from how devices are arranged, not from the devices themselves. The layout decides how data travels and how quickly systems react under pressure. This is where the structure of a network starts to show its real impact.
According to IBM, network topology is not just a structural design but a factor that directly influences performance, security, and scalability in a system. The way devices are connected determines how data flows, how fast the network responds, and how easily the system can grow over time. These effects are not theoretical. They appear in daily operations, especially when traffic increases or failures occur.
Performance Impact
Performance depends heavily on how data moves between devices. A direct path reduces latency and keeps communication smooth. Longer routes create delays and increase the chance of congestion. Even small inefficiencies can become noticeable when multiple devices send data at the same time.
The chosen layout also affects bandwidth usage. Some designs distribute traffic evenly, while others push everything through a single point. This difference becomes critical in high-demand environments. A well-planned network topology helps maintain stable performance even under load.
Scalability Impact
Growth is a constant factor in modern systems. New devices, higher traffic, and expanding services require a structure that can adapt without major disruption. Scalability depends on whether the layout can handle those changes.
Some designs allow easy expansion by adding new nodes without affecting existing connections. Others require significant reconfiguration when the system grows. This is why scalability must be considered from the beginning. A flexible structure saves time and cost in the long run.
The relationship between structure and scalability becomes clearer as networks expand. A design that works for a small setup may fail when scaled. Choosing the right approach ensures that growth does not reduce performance.
Reliability & Fault Tolerance
Failures are unavoidable in any system. Cables can break, devices can stop working, and connections can drop. What matters is how the system reacts when that happens.
Some layouts provide alternative paths, allowing data to continue flowing even if one connection fails. Others rely on a single route, which increases the risk of complete failure. Fault tolerance comes from having redundancy built into the design.
A strong network topology reduces downtime and keeps systems running even during partial failures. This stability is essential for environments that require constant availability.
Key Aspects of Network Topology
Every layout is built on a few fundamental elements that shape how the system operates. These aspects define how devices connect, how data travels, and how efficiently the network performs. Without a clear understanding of these elements, it becomes difficult to choose the right design.
Node Arrangement
Node arrangement describes how devices are positioned within the system. It shows whether connections are centralized, distributed, or layered. This arrangement affects how easily devices communicate and how faults are isolated.
A centralized design makes management simpler but can create a single point of failure. A distributed design improves resilience but may increase complexity. Each approach comes with trade-offs that influence overall performance.
Communication Paths
Communication paths define how data moves between devices. Some layouts provide direct routes, while others require data to pass through multiple nodes. The length and complexity of these paths affect speed and reliability.
Shorter paths reduce latency and improve response time. Longer paths increase the chance of delays and data loss. Clear routing is essential for maintaining consistent communication across the system.
Network Efficiency
Efficiency reflects how well resources are used during communication. It includes bandwidth usage, latency, and overall responsiveness. A well-designed structure minimizes wasted resources and keeps traffic balanced.
Poor efficiency often leads to congestion and slower performance. A structured approach improves data flow and ensures that the system can handle increasing demand. These aspects form the foundation for understanding different types of layouts later on.

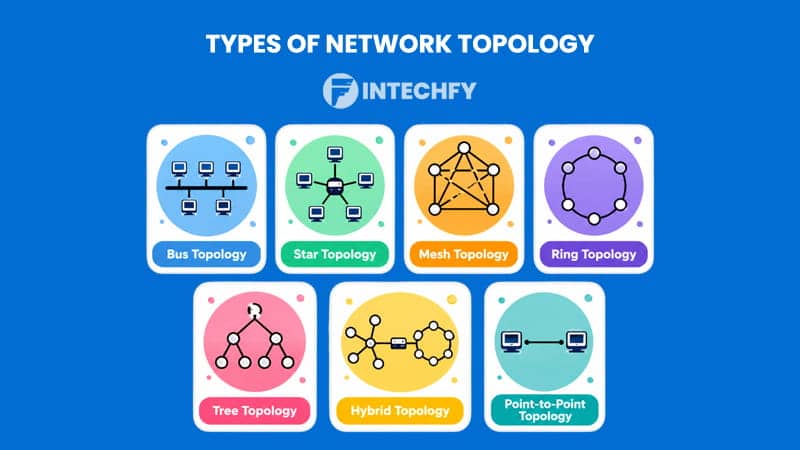

Types of Network Topology
Different layouts exist because networks solve different problems. Each design handles data flow, device connections, and fault handling in its own way. The list below covers the most common options without going too deep. This overview helps map the types of network topology before moving into comparisons.
Bus Topology
Bus topology connects all devices along a single communication line. Data travels through the same path and is received by each node. This design is simple and inexpensive to set up. It works best in small environments with low traffic.
Star Topology
Star topology connects every device to a central point, usually a switch or hub. All communication passes through that center. This makes troubleshooting easier and keeps connections organized. It is one of the most widely used network topology types in modern systems.
Mesh Topology
Mesh topology creates multiple connections between devices. Each node can connect to several others, forming a dense structure. This design provides strong reliability because data can take alternate paths. It is often used in systems where uptime is critical.
Ring Topology
Ring topology connects devices in a circular path. Data moves in one direction, passing through each node until it reaches its destination. This structure keeps traffic predictable. However, a single failure can disrupt the entire loop.
Tree Topology
Tree topology combines elements of star and bus designs. It organizes devices in a hierarchical structure with multiple levels. This makes it suitable for larger systems that need structured expansion. It balances scalability with manageability.
Hybrid Topology
Hybrid topology combines two or more designs into a single system. This allows flexibility in how different sections of a network are built. It is commonly used in large organizations where one structure is not enough. This approach adapts to different needs within the same system.
Point to Point Topology
Point to point topology connects two devices directly. There are no intermediate nodes or shared links. This creates a fast and simple communication path. It is often used for dedicated connections where performance is a priority.
Each of these designs represents a different approach to organizing connections. The choice depends on scale, budget, and performance requirements. This is where network topology starts to influence real-world decisions.
Network Topology Comparison (Performance, Cost, Reliability)
Different structures behave differently under load. Some prioritize speed, others focus on cost, and some aim for reliability. Comparing them side by side makes those differences easier to see. A clear side-by-side comparison helps identify which design fits a specific need.
| Topology | Performance | Scalability | Cost | Reliability |
|---|---|---|---|---|
| Bus | Low | Low | Low | Low |
| Star | High | Medium | Medium | Medium |
| Mesh | Very High | High | High | Very High |
| Ring | Medium | Low | Medium | Low |
| Tree | Medium | High | Medium | Medium |
| Hybrid | High | High | High | High |
How to Read This Comparison
Each column highlights a key factor. Performance shows how quickly data moves through the system. Scalability reflects how easily the network grows. Cost includes setup and maintenance. Reliability indicates how well the system handles failures.
No single design dominates every category. A structure with high performance may come with higher cost. A cheaper option may sacrifice reliability. This balance is what makes choosing the right structure important.
Quick Insights for Decision Making
Bus topology works for small, low-budget setups but struggles with growth. Star topology offers a balance between performance and cost, making it a common choice. Mesh provides the highest reliability, though it requires more resources.
Tree and hybrid designs fit larger environments where structure and flexibility matter. The best approach depends on priorities. Systems that demand uptime lean toward mesh or hybrid. Smaller setups often choose star for simplicity and efficiency.
Real-World Network Topology Examples
Design choices become easier to understand when seen in actual setups. Different environments use different layouts based on size, budget, and performance needs. These real-world examples show how structure shapes systems and daily operations.
Home Network Topology
A typical home setup follows a simple pattern. Devices such as laptops, smartphones, and smart TVs connect to a central router. This creates a star-like arrangement where everything depends on one device.
This design works well for small environments. It is easy to install, simple to manage, and affordable. When a device disconnects, it usually does not affect others. However, if the central router fails, the entire system goes offline.
Most home users do not think about structure. They focus on getting internet access and connecting devices. The layout still matters. A cleaner arrangement improves stability and keeps data flow consistent.
Enterprise Network Topology
Larger organizations require more structured designs. A single central connection is not enough to handle heavy traffic and multiple departments. This is where layered or hybrid layouts become common.
Enterprise systems often combine several structures. Core layers handle high-speed traffic, while access layers connect end devices. This separation improves control and reduces congestion. It also allows easier expansion when new departments or devices are added.
According to ManageEngine, selecting the right layout can significantly improve efficiency. It helps speed up data transfer and makes troubleshooting easier. IT teams gain a clearer view of how devices interact, making it easier to identify problems and maintain performance.
This kind of setup reflects real-world implementation where flexibility and reliability matter. The structure supports both daily operations and long-term growth.
Data Center & Cloud Networks
Data centers operate at a much larger scale. Thousands of servers handle continuous traffic, often across multiple locations. A simple layout would not be enough to support that demand.
These environments use advanced structures designed for high availability. Multiple paths allow data to move even if one connection fails. This reduces downtime and keeps services running.
Cloud systems follow a similar approach. They rely on distributed designs that balance traffic across many nodes. This improves performance and ensures consistent access for users.
In both cases, the selected layout plays a direct role in performance and reliability. Efficient designs reduce latency and keep systems responsive under heavy load.

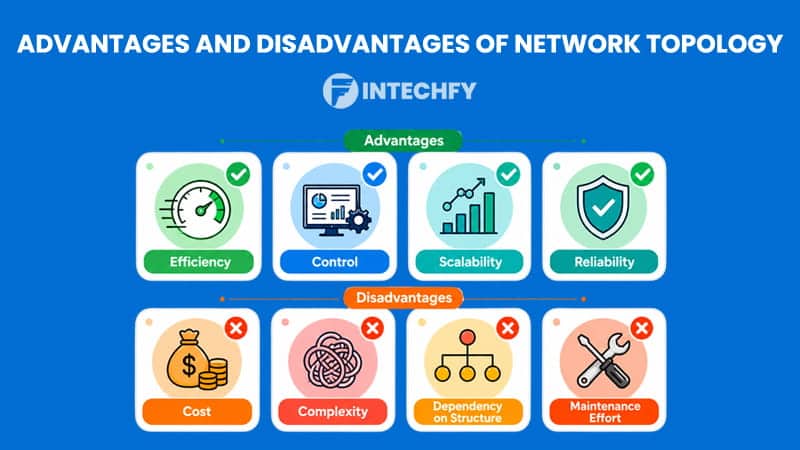

Advantages and Disadvantages of Network Topology
Every design comes with trade-offs. Some layouts offer better performance, while others focus on simplicity or cost. Looking at the advantages and disadvantages of network topology helps clarify which option fits a specific situation.
Advantages
- Efficiency — A well-planned layout improves data flow and reduces delays
- Control — Clear structure makes it easier to monitor and manage connections
- Scalability — Certain designs allow new devices to be added without major changes
- Reliability — Redundant paths help maintain communication during failures
These benefits show why choosing the right structure matters. A strong design keeps systems stable and easier to maintain.
Disadvantages
- Cost — More advanced layouts often require additional hardware and setup
- Complexity — Some designs are harder to configure and maintain
- Dependency on structure — Poor planning can create bottlenecks
- Maintenance effort — Larger systems need ongoing monitoring and adjustment
The impact of these drawbacks depends on how the system is used. A simple setup may not need advanced features. Larger systems often accept higher cost and complexity to gain better performance.
Balancing these factors is part of designing a reliable system. The role of network topology becomes clearer when both strengths and limitations are considered.
How to Choose the Right Network Topology
Choosing the right structure affects how a system performs day to day. A fast setup can still struggle if the layout does not match its workload. Stability, growth, and maintenance all depend on how connections are arranged. That is why choosing network topology should be based on clear priorities, not guesswork.
Based on Network Size
The size of a system is often the starting point. Small setups with a few devices usually benefit from simple layouts. A star design works well because it is easy to manage and does not require complex routing.
Larger environments need more structure. As the number of devices grows, traffic increases and paths become more complex. A design that works for a small office may fail in a large organization. Planning for growth early helps avoid major changes later.
Based on Budget
Cost plays a major role in deciding the layout. Simple designs require fewer devices and less setup time. This makes them suitable for small businesses or home networks.
More advanced layouts demand additional hardware and planning. Mesh and hybrid structures provide better reliability, but they come at a higher cost. The balance between cost and performance often determines what becomes the best network topology for a specific case.
Based on Performance Needs
Performance requirements vary depending on how the system is used. A network handling basic tasks may not need complex routing. A system supporting heavy traffic or critical services requires a more robust structure.
High-demand environments benefit from designs that reduce latency and provide alternate paths. This ensures consistent performance even under load. The role of network topology becomes more visible when performance expectations increase.
Quick Decision Framework
- Small setups → star topology
- Medium environments → tree or hybrid
- Enterprise systems → mesh or hybrid
This simple framework helps narrow down options. It connects size and requirements with the most suitable layout. The goal is not to pick the most complex design, but to choose one that fits the situation.
Common Network Topology Design Challenges and Solutions
Designing a system is not always straightforward. Even well-planned layouts can face issues as conditions change. These challenges often appear when systems grow or when requirements shift. Addressing them early improves long-term stability.
Scalability Issues
Growth can expose weaknesses in the original design. A layout that works with a few devices may struggle when more are added. Congestion increases, and performance drops.
This problem often comes from limited paths or centralized structures. Expanding the system without adjusting the layout creates bottlenecks. Scalability must be considered from the start of the network structure design.
Cost Constraints
Budget limits can restrict design choices. Some organizations choose simpler layouts to reduce initial expenses. This can lead to higher costs later when upgrades are needed.
Balancing cost with long-term needs is essential. Spending less at the beginning may create more work in the future. A well-planned network topology reduces unexpected expenses.
Network Complexity
Complex systems can become difficult to manage. Multiple connections, layers, and devices increase the chance of misconfiguration. Troubleshooting also becomes more time-consuming.
Complexity is not always avoidable. Large environments require more advanced designs. The challenge is keeping the system organized while maintaining performance.
Practical Solutions
- Modular design — build the system in sections that can be expanded easily
- Hybrid approach — combine different layouts to balance performance and flexibility
These solutions help manage growth and reduce risk. They also make it easier to adjust the system as requirements change. A thoughtful approach to network topology design keeps the system stable over time.
Conclusion
A system may appear stable on the surface, yet struggle under pressure due to poor structure. Devices, cables, and configurations all play a role, but the arrangement behind them matters just as much. The way connections are organized shapes how data moves and how efficiently systems operate.
Network topology defines that structure. It influences performance, reliability, and the ability to scale as demands increase. A well-planned layout keeps communication smooth and predictable. A weak one introduces delays and hidden issues that become harder to fix later.
The difference often comes from small design choices. Shorter paths, balanced traffic, and clear organization create noticeable improvements. Over time, these details determine whether a system remains stable or requires constant adjustment.
Network topology is not just a structural concept. It acts as a strategy that supports performance and efficiency across the entire system.
FAQs About Network Topology
What is network topology in simple terms?
It refers to how devices and connections are arranged within a system. This layout determines how data moves and how communication paths are formed between devices.
Why is network topology important?
The structure affects performance, reliability, and scalability. A well-planned setup keeps data flow efficient and makes troubleshooting easier.
What are the most common types of network topology?
Common designs include star, bus, mesh, ring, tree, and hybrid. Each option offers different strengths depending on size, cost, and usage needs.
Which network topology is best?
There is no single answer. Smaller setups usually benefit from a star layout, while larger environments often use mesh or hybrid designs for better stability.
What is the difference between physical and logical topology?
Physical topology describes how devices are connected in real space. Logical topology explains how data travels across those connections.
