What Is Bus Topology? How It Works, Advantages, Disadvantages, and Examples

Bus topology is one of the earliest network architectures used in computer networking and small LAN environments. In this setup, all devices connect to a single backbone cable that carries data across the entire network. Before modern systems adopted more advanced layouts, this design became popular because it was affordable, simple to configure, and easy to expand in small office networks.

According to Cisco, choosing the right network topology can improve network performance, simplify troubleshooting, and help organizations manage resources more efficiently. This explains why linear network design became one of the foundational designs in early computer networking.

Despite its practical setup, this topology also introduced several limitations. A damaged backbone cable could interrupt the entire network, while heavy traffic often caused slower communication and packet collisions. Over time, these weaknesses made other network structures more suitable for larger and more demanding environments.

Even today, bus topology remains an important topic in networking education. It gives beginners a clear view of how data transmission, network communication, and LAN architecture work in a shared communication system.

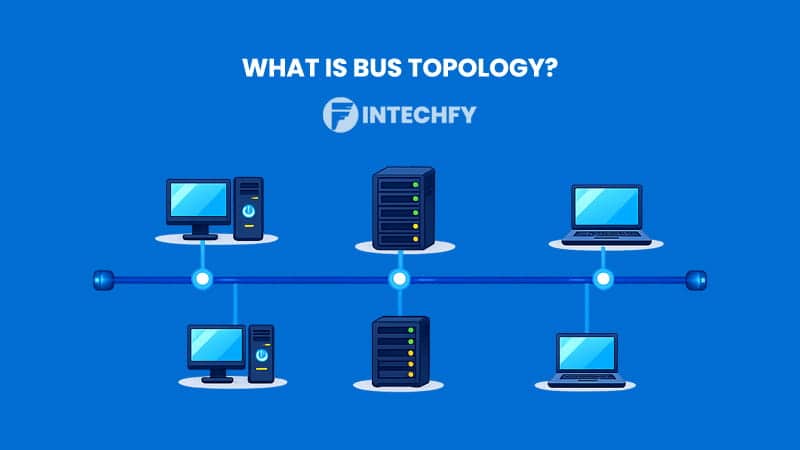

What Is Bus Topology?

A bus topology is a network layout where multiple devices share a single communication line to exchange data. Instead of using separate cables for every connection, all computers and network devices attach to one main transmission path known as the backbone cable. Because every node relies on the same line, information travels through a shared channel before reaching its destination.

This design became widely used in early LAN environments because it required less hardware and minimal cabling. Small offices, schools, and laboratories often preferred this structure due to its low installation cost and simple configuration. In many cases, adding a new device only required connecting it directly to the existing line.

The core idea behind the bus topology definition is straightforward. When a device sends data, the signal moves through the entire cable until it reaches the intended network node. Each connected device can detect the transmission, but only the correct recipient processes the packet. This method allowed early computer networks to communicate without requiring complex infrastructure.

Another reason this layout gained popularity was its simplicity in networking education. Many beginners study bus topology in networking because it clearly demonstrates how shared communication systems operate. It also provides a basic introduction to data transmission, packet flow, and network architecture before moving into more advanced topologies.

Why It Is Called a Bus Topology

The word “bus” comes from the concept of a shared transportation path. In networking, all devices communicate through one common channel instead of separate dedicated connections. The backbone cable acts as the central route that carries signals between computers, printers, servers, and other connected hardware.

Since every device depends on the same transmission medium, communication flows in a linear direction across the network. This structure made installation easier compared to more complicated systems used in larger enterprise environments. Although modern infrastructures now prefer faster and more scalable layouts, the original concept still plays an important role in networking fundamentals.

How Bus Topology Works

When a computer sends information, the signal enters the main cable and travels across the network until it reaches all connected devices. Every network node checks the incoming packet, but only the intended recipient accepts and processes the data.

Step	What Happens
Device Sends Data	A computer or device transmits a signal into the network
Signal Travels	Data moves through the backbone cable
Nodes Check Packets	Every connected device reads the incoming signal
Intended Device Responds	The correct recipient accepts and processes the packet

Data Transmission Process

This setup creates a shared communication environment where all connected devices rely on the same transmission line. Since every system uses one channel, simultaneous transmissions can sometimes overlap and create packet collisions. As network traffic increases, performance may slow down because multiple devices compete for the same bandwidth.

Role of the Backbone Cable

The bus topology cable acts as the central transmission medium for the entire network. In traditional LAN setups, coaxial cable was commonly used because it delivered stable communication at a relatively low cost. Devices connected through T-connectors or similar hardware could communicate across the shared line without requiring switches or advanced networking equipment.

Based on Cisco networking fundamentals documentation, This topology connects all devices through a single backbone cable, while terminators are placed at both ends to prevent signal reflection across the network.

Why Terminators Are Important

Terminators play a critical role in maintaining stable network communication. Signals do not automatically stop after reaching the final device. Without proper termination, electrical signals can bounce back through the cable and interfere with ongoing data transmission.

This signal reflection may cause corrupted packets, unstable performance, and communication interruptions across the network. A bus topology terminator absorbs unused signals and helps maintain reliable communication throughout the shared network structure.

Even though the design is relatively simple, proper installation remains essential for stable performance in small network environments.

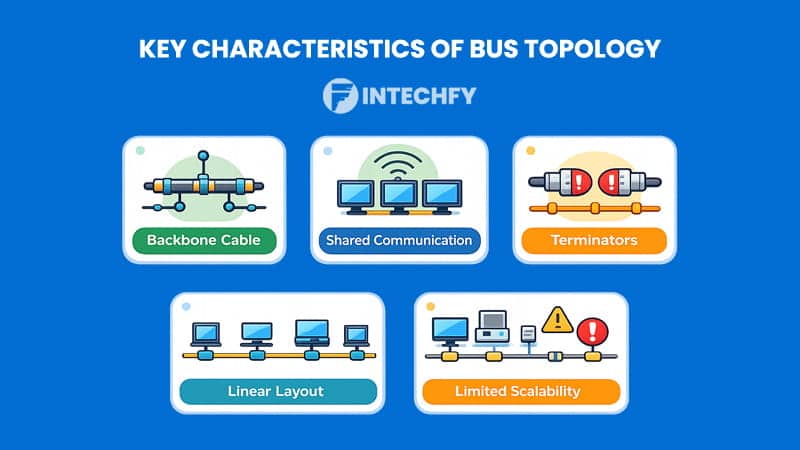

Key Characteristics of Bus Topology

Several features make this network structure easy to recognize. The key characteristics of bus topology mainly focus on its linear design and shared communication method.

Main Characteristics

• Uses a single backbone cable as the primary communication path
• Devices connect through one shared transmission line
• Supports relatively simple installation in small networks
• Requires less cabling than many other network layouts
• Acts as a central communication medium for all connected nodes
• Allows easy device connection in limited environments

Network Behavior

Because all devices share the same bandwidth, heavy traffic can reduce overall performance. Multiple transmissions occurring simultaneously may create packet collision problems, especially in busy networks with many connected devices.

Scalability also becomes a challenge. As more computers join the system, network communication may slow down due to increased traffic across the shared channel. This limitation is one reason modern infrastructures often choose more advanced topologies for larger environments.

Characteristic	Description
Backbone Cable	Main cable connecting all devices
Shared Communication	All devices use the same transmission line
Terminators	Prevent signal bounce
Linear Layout	Devices arranged along one cable
Limited Scalability	Performance drops with many devices

Components Used in Bus Topology

Several hardware components work together to keep this shared communication system running properly. Although the design looks simple compared to modern network structures, each part plays an important role in maintaining stable data transmission across the network.

Backbone Cable

The backbone cable acts as the primary communication path in a bus topology. Every connected device relies on this main line to send and receive information. If the cable stops working, communication across the entire network may fail because all traffic depends on a single transmission route.

In traditional setups, coaxial cable was the most common option because it provided reliable signal transmission at a relatively affordable cost. This type of cable also helped reduce external interference, making it practical for small office networks and educational environments.

The main network cable carries signals from one device to another through the shared line. Since all communication travels across the same path, stable cable quality becomes essential for maintaining consistent performance.

Terminators

Terminators are installed at both ends of the cable to stop signals from reflecting back through the network. Without these components, electrical signals could continue bouncing along the line and interfere with ongoing communication.

A terminator device helps maintain network stability by absorbing unused signals once data reaches the end of the transmission path. This reduces communication errors and minimizes the risk of corrupted packets.

Even though these components are small, they are critical for proper operation in a backbone-based network. Improper termination can cause unstable communication, slower performance, and connection interruptions across connected devices.

Connectors and Nodes

Connectors and network nodes also play an important role in this layout. T-connectors are commonly used to attach workstations and other network devices directly to the shared cable. Each connected computer becomes part of the communication system and can send or receive data across the network.

In smaller LAN environments, this setup allowed businesses and schools to expand their networks without requiring complicated computer networking hardware installations. Devices could often be added with minimal configuration compared to more advanced network architectures.

Common Hardware Used

Common hardware found in this structure includes:

• Coaxial cables
• BNC connectors
• NIC cards
• Terminators
• T-connectors
• Workstations and other network devices

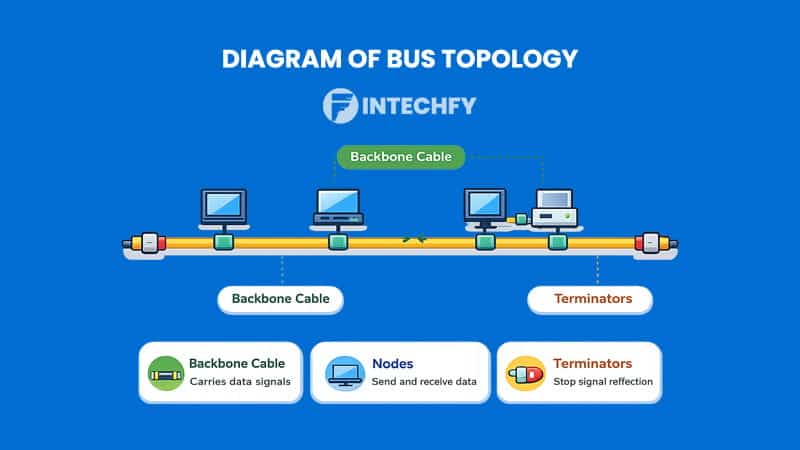

Diagram of Bus Topology Explained

A diagram of bus topology usually shows a simple linear structure where all devices connect to one shared communication line. Instead of linking each computer individually, every workstation attaches directly to the same backbone cable.

Signals travel across the network until they reach the intended destination. Because all devices share one transmission path, communication moves through the entire line before the correct node processes the incoming packet.

In most illustrations, terminators appear at both ends of the cable to prevent signal reflection and maintain stable communication. This makes the physical layout explanation easier for beginners who want to learn how data flows inside a shared network structure.

This network structure is often considered one of the easiest layouts to visualize because of its straightforward design and limited hardware requirements.

Component	Function
Backbone Cable	Carries data signals
Nodes	Send and receive data
Terminators	Stop signal reflection

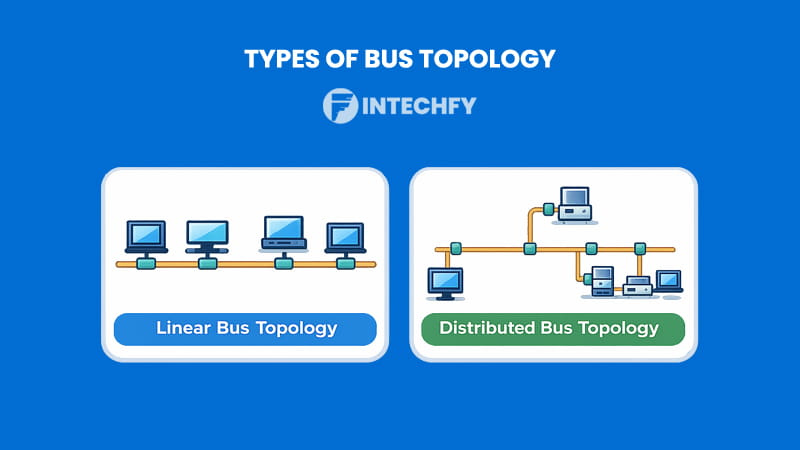

Types of Bus Topology

There are two common variations of this network layout used in computer networking. Both follow the same shared communication concept, but their layouts differ slightly depending on network size and design requirements.

Linear Bus Topology

The linear variation is the most common form used in small LAN environments. In this setup, every device connects to a single backbone cable arranged in a straight line. Communication flows through one central path shared by all connected systems.

Because the structure is simple, installation and maintenance are generally easier compared to larger network architectures. This design became popular in early office and classroom environments where low-cost communication systems were important.

Distributed Bus Topology

The distributed variation uses multiple connected cable segments instead of relying on one continuous line. This approach offers slightly more flexibility and can support larger communication setups compared to a basic linear structure.

Although still considered part of the same shared communication model, distributed layouts help reduce some limitations found in smaller installations. However, increased complexity may also make troubleshooting more difficult in larger environments.

Advantages of Bus Topology

Several benefits helped this layout become popular in early computer networking environments. Its simple design and low hardware requirements allowed organizations to build functional networks without large infrastructure costs.

Easy Installation

One of the biggest advantages of this setup is its straightforward installation process. Devices connect directly to a shared cable, reducing the need for complicated hardware or advanced configuration.

Lower Cost

This layout typically costs less than many other network structures because it requires fewer cables and fewer networking components. Small businesses and schools often preferred this setup for budget reasons.

Requires Less Cable

Unlike topologies that require separate connections between devices, this design uses one main communication line. Reduced cabling helped lower infrastructure expenses and simplified network expansion.

Simple for Small Networks

This topology works best in smaller LAN environments where the number of connected devices remains limited. In these setups, the structure can provide stable communication while remaining easy to manage for beginners and small organizations.

Advantage	Benefit
Low Cost	Less hardware required
Simple Setup	Easy installation process
Minimal Cabling	Reduces infrastructure cost
Good for Small LANs	Suitable for limited devices

Disadvantages of Bus Topology

Although this network structure was once popular in small LAN environments, several technical limitations eventually reduced its practicality in modern networking. Many of the disadvantages of bus topology become more noticeable as the number of connected devices increases and network traffic becomes heavier.

Single Point of Failure

One of the biggest weaknesses of this layout is its dependence on a single backbone cable. Every workstation and connected device relies on the same communication path to send and receive information. If the main cable becomes damaged, disconnected, or overloaded, the entire system may stop functioning.

This creates a serious network failure risk because one hardware issue can interrupt communication across all connected devices. Unlike more modern topologies that isolate problems more effectively, this backbone-based network depends heavily on one central transmission line.

Difficult Troubleshooting

Troubleshooting can also become challenging, especially in larger setups. Since every device shares the same communication channel, identifying the exact source of a signal interruption is not always easy.

A damaged connector, loose cable, or malfunctioning workstation may affect the entire network structure without immediately revealing the cause. Administrators often need to inspect multiple components individually before locating the problem.

In smaller environments, this process may remain manageable. However, fault detection becomes increasingly difficult as more devices join the shared communication system.

Performance Problems

Performance limitations are another major concern. Because all connected devices use the same transmission path, data traffic can quickly become congested during busy periods.

A collision in bus topology environments occurs when multiple devices attempt to send data simultaneously through the same cable. These overlapping transmissions may corrupt packets and force systems to resend information, reducing overall communication speed.

Shared bandwidth also limits performance. As additional devices connect to the network, the available communication capacity must be divided among more users. This often results in slower data transmission and reduced efficiency in active environments.

The disadvantages of bus topology became more obvious as organizations started using larger networks with higher traffic demands. Modern applications, cloud systems, and enterprise tools require faster communication speeds and more reliable performance than this layout can typically provide.

Limited Scalability

The scalability of bus topology is relatively limited compared to newer network architectures. Small office setups may function adequately with only a few connected systems, but larger installations often experience reduced performance and stability issues.

As the network expands, longer cables and additional devices increase the chances of communication errors and packet collisions. Maintenance also becomes more complicated because every component depends on the same communication line.

This is one reason modern businesses usually prefer star topology for enterprise environments. In a star-based structure, each device connects to a central switch rather than relying on one shared cable. Problems affecting one workstation generally do not interrupt the entire network, making maintenance easier and communication more stable.

Over time, this topology became outdated for large-scale environments because organizations needed faster speeds, improved scalability, and better fault isolation. Even though it still appears in networking education, modern enterprise systems rarely rely on this design for daily operations.

Bus Topology Example in Real Life

A common bus topology example in real life can be found in early office LAN environments from the 1980s and 1990s. Small businesses often connected multiple computers through one shared cable to reduce installation costs and simplify communication between workstations.

School computer labs also used this layout because it required fewer networking components and allowed administrators to connect several systems without complicated infrastructure. In many classrooms, computers were linked through a single communication line that supported basic file sharing and printer access.

Temporary network installations sometimes relied on this structure as well. Trade shows, training centers, and short-term office setups benefited from the relatively simple installation process.

Although the applications of bus topology have declined in modern enterprise environments, the design still appears in networking education. Many training programs continue teaching this structure because it demonstrates how shared communication systems operate and helps beginners learn networking fundamentals.

Bus Topology vs Other Network Topologies

• vs Star Topology: Star topology offers better fault isolation because each device connects to a central switch instead of one shared cable.
• vs Ring Topology: Ring networks send data in a circular path, while this layout uses a linear communication structure.
• vs Mesh Topology: Mesh networks provide multiple communication paths for improved reliability and redundancy.
• vs Tree Topology: Tree structures combine hierarchical branching with centralized communication management.
• vs Hybrid Topology: Hybrid networks merge multiple layouts to improve flexibility and scalability.
• vs Point-to-Point: Point-to-point connections create direct communication between two devices without shared bandwidth.

Conclusion

Bus topology remains one of the most important concepts in networking fundamentals because it demonstrates how shared communication systems operate through a single backbone cable. Its simple design, lower installation cost, and minimal hardware requirements made it popular in early LAN environments.

At the same time, limited scalability, packet collisions, and dependence on one communication line reduced its practicality for larger networks. Even though modern organizations now prefer more advanced structures, this layout still plays a valuable role in networking education and technical training.
