Modern computing devices rarely operate in isolation. Laptops, smartphones, servers, and embedded systems all rely on a software layer that coordinates hardware activity and application execution. This coordination happens through the components of an operating system, which organize how processors, memory, and devices work together inside a machine.
Without this system layer, hardware would simply execute raw instructions without structure or control. Programs would compete for processor time, memory could become corrupted, and devices would respond unpredictably. The operating system prevents these problems by providing a central environment where resources are distributed and managed efficiently.
At a high level, the OS acts as an intermediary between users, applications, and hardware. Users interact with software interfaces, applications request resources to perform tasks, and hardware executes the underlying operations. These interactions depend on the components of an operating system working together to coordinate system behavior.
This coordination also relies on a clear operating system architecture. Each subsystem within the OS performs specific responsibilities while remaining connected to other parts of the system. Process scheduling, memory allocation, storage access, and device communication all occur through these structured layers.
The structure of operating system design allows multiple programs to operate simultaneously without interfering with one another. A browser, media player, and document editor can run at the same time while the OS ensures that each program receives processor time and memory resources when needed.
In addition to coordinating programs, the OS provides essential operating system services that support application execution. File handling, device communication, system calls, and process scheduling allow applications to perform tasks without directly interacting with hardware.
Research from IBM highlights this role clearly. According to IBM, an operating system functions as a control layer between computer hardware and application software. It manages system resources such as processors, memory, storage devices, and input/output hardware while enabling users and applications to interact with the system.
This resource coordination involves several critical responsibilities. The OS schedules CPU activity so multiple programs appear to run simultaneously. It manages memory allocation to ensure that each process receives dedicated space in RAM. Hardware devices are also coordinated so applications can access storage drives, displays, or input devices through standardized system interfaces.
All of these activities depend on structured subsystems inside the operating system. These subsystems form the components of an operating system, each responsible for a specific aspect of system control.
Examining these components reveals how computers maintain stability while running many tasks at once. Each module handles a different responsibility, yet they all work together to keep the system responsive and reliable.
What Are the Components of an Operating System
The components of an operating system refer to the internal subsystems responsible for controlling computer resources and supporting program execution. These subsystems form the technical foundation of system software and determine how a computer behaves during everyday tasks.
Each module within the OS manages a particular function, yet all modules remain connected through the broader structure of operating system design. This structure allows processors, memory, storage devices, and peripherals to operate as a coordinated environment rather than separate hardware elements.
In practical terms, the components of an operating system handle everything from launching programs to managing files and communicating with hardware devices. These modules ensure that applications run efficiently while protecting the system from conflicts or instability.
Role of OS Components
The components of an operating system play a central role in allocating system resources. Processor time, memory space, and device access must be distributed across active programs so no single application dominates the system.
Multitasking depends heavily on these mechanisms. When several applications run simultaneously, the OS schedules processor activity and manages memory usage so each program continues operating smoothly.
Hardware coordination is another responsibility of operating system components. Devices such as keyboards, printers, storage drives, and graphics processors require controlled communication with software. The OS translates application requests into hardware instructions, ensuring compatibility between programs and physical devices.
System stability also relies on these internal modules. Process isolation and memory protection prevent one program from interfering with another. If an application crashes, the OS can contain the issue without affecting the entire system.
These safeguards demonstrate why the components of an operating system remain essential to modern computing environments.
Why Understanding OS Components Matters
Learning the basic components of operating system design helps computer science students understand how software interacts with hardware. Concepts such as process scheduling, memory allocation, and system calls become clearer when viewed through the structure of OS components.
System administrators also benefit from this knowledge. Diagnosing performance issues often requires understanding how processes, memory, and storage interact inside the operating system.
Developers gain insight as well. Efficient software design depends on recognizing how the OS allocates resources and manages program execution.
Studying the components of an operating system ultimately reveals how modern computers maintain stability, efficiency, and multitasking capability. This understanding provides the foundation for exploring the individual modules that make up a complete operating system.

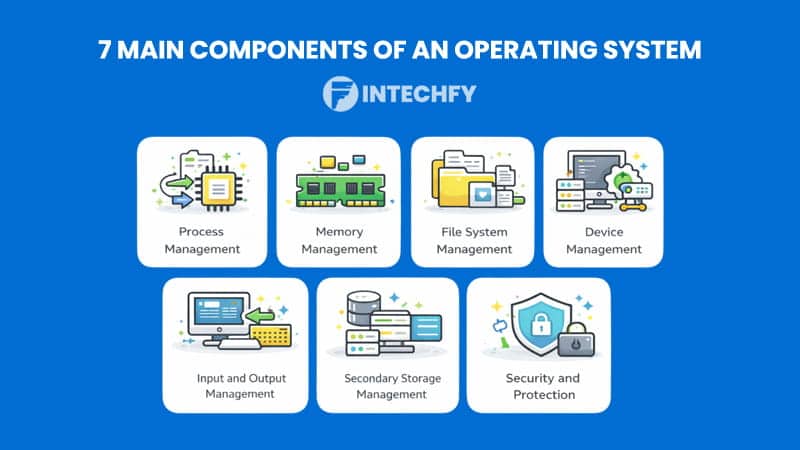

7 Main Components of an Operating System
Every modern computer depends on several internal modules that coordinate hardware activity and support application execution. These modules are known as the components of an operating system, and they form the internal structure that keeps a computer functioning smoothly. Instead of relying on a single control mechanism, the OS divides its responsibilities across specialized subsystems.
Each subsystem focuses on a specific area of system management. Some control processor activity, others organize memory usage, while several handle storage, hardware communication, and system protection. Together, these components of an operating system ensure that programs can run simultaneously without interfering with one another.
This modular design allows operating systems to maintain stability even when multiple applications operate at the same time. A user might open a browser, play music, and edit a document concurrently. The system continues running smoothly because different components of an operating system coordinate how resources are distributed and protected.
Dividing responsibilities into dedicated modules also simplifies system maintenance and development. Engineers can improve individual subsystems without redesigning the entire operating system. The result is a flexible environment capable of supporting diverse computing tasks across desktops, servers, and mobile devices.
Overview of Core OS Components
Most operating systems rely on a similar internal structure composed of several core modules. Each one contributes to the overall coordination of hardware resources and program execution.
The main subsystems typically included in the components of an operating system are:
- Process Management – controls program execution and manages how processes share CPU time.
- Memory Management – regulates RAM usage and allocates memory space to active programs.
- File System Management – organizes how data is stored, retrieved, and structured on storage devices.
- Device Management – coordinates communication between the system and connected hardware devices.
- Input and Output Management – handles the flow of data between applications and hardware interfaces.
- Secondary Storage Management – controls long-term storage operations such as disk allocation and scheduling.
- Security and Protection – safeguards system resources and prevents unauthorized access.
Each of these modules represents an essential part of the components of an operating system, ensuring that computing systems remain organized, efficient, and secure. The following sections explore these components in detail, explaining how each one contributes to the overall behavior of an operating system.
1. Process Management
Process management represents one of the most critical components of an operating system. Every program running on a computer becomes a process, and the OS must coordinate how those processes use the processor. Without structured control, multiple programs competing for CPU time could easily disrupt system stability.
At its core, process management controls how tasks are created, executed, and terminated during system operation. A web browser, media player, and document editor may run simultaneously on a single machine. The OS ensures that each of these programs receives fair access to the processor while preventing interference between tasks.
Definition of Process Management
Process management refers to the subsystem responsible for organizing and supervising processes that execute on the CPU. The operating system monitors active programs, assigns processor time, and manages how processes interact with system resources.
Each running program has its own process structure containing information such as memory location, execution state, and scheduling priority. This information allows the OS to pause one process and resume another without losing progress.
Efficient CPU scheduling becomes essential in this environment. The scheduler determines which process receives CPU time and how long it can run before another process takes over. Rapid switching between processes creates the impression that many programs operate simultaneously.
Multitasking environments depend heavily on this mechanism. Modern computers run dozens of background services alongside user applications. The OS coordinates this activity so each program continues functioning without noticeable delay.
Functions of Process Management
Several key operations define how process management works inside an operating system. These operations allow the system to coordinate multiple programs safely and efficiently.
The OS begins by handling process creation. When a user launches an application, the system creates a process entry that contains execution data, memory references, and scheduling information.
Processes eventually reach completion or may be closed by the user. In those cases, the OS performs process termination, freeing system resources that were assigned to the program.
Another critical function is CPU scheduling. The scheduler distributes processor time among active processes using scheduling algorithms that balance performance and responsiveness.
Systems also rely on synchronization mechanisms to prevent multiple processes from accessing shared resources at the same time. This control prevents data corruption and ensures reliable program execution.
Finally, interprocess communication allows processes to exchange data. Programs often need to coordinate tasks or share information, and the OS provides communication channels for this purpose.
University-level operating system studies explain that process management handles process creation, termination, scheduling, and communication between processes so multiple programs can run efficiently without interfering with each other.
Real Example
A simple multitasking scenario demonstrates how process management operates in practice. Imagine a user opening a web browser, playing a video, and editing a document at the same time.
The browser retrieves data from the internet, the media player decodes video frames, and the text editor responds to keyboard input. Each program operates as a separate process.
The OS rapidly switches between these tasks using scheduling techniques. This switching occurs within milliseconds, allowing the system to maintain smooth performance even with multiple active applications.
Process management therefore remains one of the most essential components of an operating system, ensuring that complex multitasking environments remain stable and efficient.
2. Memory Management
Memory management is another core subsystem responsible for organizing how programs use RAM. Since many applications may run simultaneously, the OS must carefully regulate how memory resources are allocated and protected.
Within the broader components of an operating system, memory management ensures that each process receives the memory space required for execution. It also prevents programs from accessing memory areas belonging to other processes.
Without structured memory control, a single faulty program could overwrite system data or disrupt other applications. The OS prevents these issues by maintaining a detailed record of memory usage.
Role of Memory Management
The primary role of memory management is to control how RAM is distributed among active programs. Each running process requires memory for instructions, variables, and temporary data.
When a program launches, the OS assigns a specific portion of RAM to that process. This space remains isolated so other programs cannot interfere with it.
Tracking memory usage also allows the system to identify which portions of RAM are free and which are currently occupied. Efficient monitoring ensures that resources are utilized without unnecessary waste.
Modern systems frequently run dozens of applications and background services simultaneously. Effective memory management ensures that these programs coexist without conflicts.
Key Responsibilities
Several responsibilities define how the memory subsystem operates inside an operating system.
The OS begins by tracking memory usage. It maintains a map of memory regions that indicates which areas are available and which are already assigned to processes.
Next, the system performs RAM allocation. When an application launches, the OS assigns the memory required for program code, stack operations, and runtime data.
As programs terminate, the OS handles memory deallocation, returning unused memory to the pool of available resources.
Another important feature is virtual memory. This technique allows the operating system to extend available memory beyond physical RAM by using storage devices as temporary memory space.
Virtual memory enables computers to run large programs even when RAM capacity is limited. The OS temporarily transfers inactive data from RAM to disk storage and retrieves it when needed.
Example Scenario
Consider a situation where a user opens a browser with many tabs, runs a video editing program, and launches a messaging application.
Each of these programs requires memory for its data and execution environment. The OS distributes RAM across these processes while ensuring that each program operates within its allocated space.
If memory demand becomes too high, virtual memory mechanisms activate. The system moves less active data to storage while keeping active processes in RAM.
Through these mechanisms, memory management remains one of the essential components of an operating system, maintaining system performance and stability even under heavy workloads.
3. File System Management
File system management is responsible for organizing how data is stored and accessed on storage devices. Within the components of an operating system, this subsystem ensures that files remain structured, accessible, and protected while applications read or write information.
Every program interacts with stored data in some form. Documents, images, application files, and system configurations must be placed in an organized structure so users and programs can locate them quickly. The OS handles this responsibility through file system management, which controls how files are created, stored, and retrieved.
Definition of File system management
File system management refers to the subsystem that organizes and controls data stored on disks or other storage devices. It defines how files are structured, how directories are arranged, and how programs access stored information.
The operating system maintains a directory structure that groups files into folders and subfolders. This structure allows users and applications to navigate storage devices logically instead of searching through raw disk sectors.
Through this organized structure, the OS keeps track of file locations, file names, permissions, and metadata such as creation dates or file size.
File Operations
A major responsibility of file system management involves handling common file operations requested by applications or users.
The operating system allows programs to create new files when saving documents or generating application data. It also enables users to delete files that are no longer needed.
Applications frequently read files to retrieve stored data. For example, a text editor loads a document from storage before displaying it to the user.
Programs also write data to files during saving operations. The OS ensures that new information is stored correctly without damaging existing data.
Another important function involves directory management. The OS organizes files into folders so users can categorize information logically and locate it easily.
These operations represent essential operating system components working together to maintain reliable data storage.
Example
A simple example illustrates how file system management works during everyday computer use.
Suppose a user creates a document in a word processor and saves it inside a folder labeled “Projects.” The application sends a request to the operating system to create the file and store its contents.
The OS records the file name, assigns a storage location on the disk, and updates the directory structure so the document appears in the selected folder.
Later, when the user opens that document again, the OS locates the stored file and loads its contents back into memory for editing.
Through these mechanisms, file system management remains one of the critical components of an operating system, ensuring that data remains organized and accessible across the entire computing environment.
4. Device Management
Device management focuses on coordinating communication between the operating system and hardware components connected to the computer. Modern systems interact with numerous devices, including keyboards, storage drives, printers, network adapters, and graphics processors.
Inside the components of an operating system, device management acts as the control layer that enables applications to communicate with hardware without needing to understand device-specific details.
Role of Device Management
The primary responsibility of device management is to control hardware resources and coordinate how devices interact with the system.
Each hardware component performs specialized functions. A keyboard sends input signals, storage drives read and write data, and graphics processors render visual output. The OS manages these interactions so applications can access devices safely and efficiently.
This coordination represents a key part of hardware management. The operating system must track which devices are connected, manage their usage, and ensure that multiple applications do not conflict when requesting hardware access.
Devices Managed
The operating system manages a wide range of hardware components during normal system operation.
Input devices such as keyboards and mice allow users to interact with applications. Output devices such as printers and displays present information generated by software.
Storage devices also fall under device management. Hard drives and solid-state drives provide persistent storage for files and applications.
Graphics processing units (GPUs) represent another important hardware component. They handle complex visual processing required for gaming, design software, and modern graphical interfaces.
All of these devices must communicate with the operating system through structured control mechanisms.
Device Drivers
Communication between software and hardware relies on specialized programs called device drivers.
Drivers translate generic operating system commands into device-specific instructions that hardware components understand. Without these drivers, applications would need detailed knowledge of every hardware device, which would make system design extremely complex.
For example, when a user prints a document, the application sends a print request to the operating system. The OS forwards that request to the printer driver, which converts the command into instructions the printer hardware can execute.
Through this abstraction layer, device management becomes one of the essential components of an operating system, allowing software to interact with diverse hardware devices while maintaining system stability and compatibility.
5. Input and Output Management
Input and Output management focuses on controlling how data moves between applications and hardware devices. Within the components of an operating system, this subsystem ensures that information entering or leaving the computer is handled efficiently and without conflict.
Computers constantly exchange data with external devices. Users type commands through keyboards, move pointers with a mouse, or receive visual output on a monitor. The OS coordinates these interactions so applications can process information without needing to directly control hardware.
Input Devices
Input devices allow users to send commands or data into the system. Common examples include keyboards and mice, which generate signals whenever a user presses a key or clicks a button.
The OS receives these signals through the I/O system, which interprets device input and forwards it to the appropriate application. For instance, typing text in a document editor involves continuous input signals being translated into characters displayed on the screen.
Output Devices
Output devices present information generated by software. Monitors display graphical interfaces, while printers convert digital documents into physical pages.
The OS coordinates these devices by managing how applications send output requests. Programs do not interact with hardware directly. Instead, they communicate with the operating system, which processes the request and sends instructions to the appropriate device.
Data Flow Handling
Efficient data exchange requires careful coordination. The OS often uses techniques such as buffering to temporarily store data during transfer. Buffering prevents devices with different speeds from disrupting program execution.
Through structured I/O coordination, input and output management remains one of the critical components of an operating system, ensuring smooth communication between applications and external hardware.
6. Secondary Storage Management
Secondary storage management handles long-term data storage within a computer system. While RAM stores temporary data for running programs, storage devices such as hard drives and solid-state drives retain information even when the system powers off.
Within the components of an operating system, this subsystem controls how storage space is allocated and accessed by applications.
Storage Allocation
The OS determines how disk space is distributed across files and applications. This process, known as storage allocation, ensures that data is stored efficiently without wasting disk capacity.
When a user saves a file, the operating system identifies available disk space and assigns storage blocks where the file contents will be written. The OS also maintains metadata that records file locations and access permissions.
Efficient allocation prevents fragmentation and keeps storage devices organized.
Disk Scheduling
Storage devices often receive multiple read and write requests simultaneously. The OS manages these requests using disk scheduling techniques that optimize the order in which operations occur.
By organizing disk access requests carefully, the OS reduces delays and improves overall system performance. This optimization becomes especially important in servers and systems handling large volumes of data.
Through storage allocation and disk scheduling, secondary storage management remains one of the essential components of an operating system, maintaining reliable access to long-term data.
7. Security and Protection
Security and protection safeguard the operating system and its resources from unauthorized access or interference. As computers handle sensitive data and run multiple programs simultaneously, maintaining a secure environment becomes critical.
Within the components of an operating system, this subsystem ensures that users and processes operate within controlled boundaries.
User Authentication
Security begins with user authentication. Most systems require users to log in using credentials such as passwords or biometric verification.
This process allows the OS to identify who is accessing the system and determine which resources they are allowed to use.
Access Control
Once a user is authenticated, the OS enforces access control policies. These policies define which files, applications, or system functions a user can access.
Access control prevents unauthorized modification of important system data and protects sensitive information from misuse.
Process Protection
Another responsibility involves protecting active processes from interference. Multiple programs may run at the same time, but they must remain isolated from one another.
System protection mechanisms ensure that one application cannot overwrite memory or data belonging to another process. This isolation maintains system stability while supporting multitasking environments.
Security and protection therefore remain vital components of an operating system, preserving system integrity while safeguarding both users and applications.
Operating System Architecture
Operating system architecture describes how the internal subsystems of an OS are organized and connected. This structure defines how core modules interact with hardware resources and software applications.
The design of operating system architecture determines how efficiently the OS manages processes, memory, devices, and storage resources.
What Is OS Architecture
An OS architecture represents the structural design of the operating system. It defines how internal modules communicate and how system services interact with hardware.
Different systems implement different layered operating system architecture models, but most rely on clearly defined boundaries between components. This separation improves reliability and simplifies system maintenance.
Applications interact with system services rather than directly accessing hardware. The OS translates these requests and coordinates communication between software and physical devices.

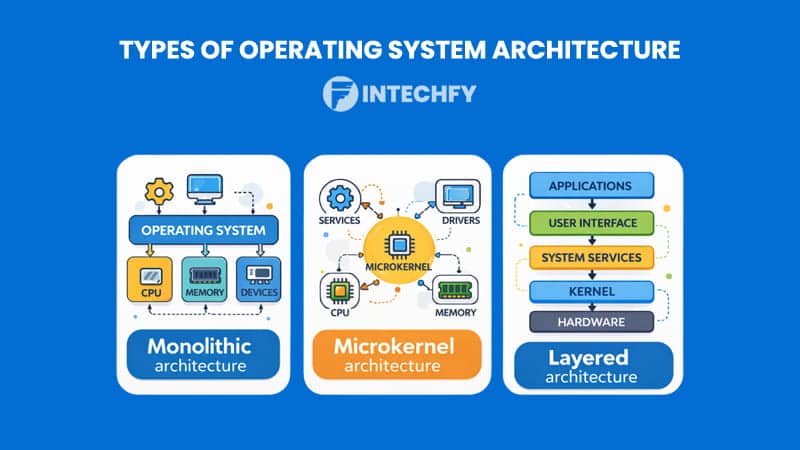

Types of Operating System Architecture
Several architectural models appear in modern operating systems.
Monolithic architecture places most operating system services inside the kernel. This design provides high performance because components communicate directly within a single kernel space.
Microkernel architecture moves many services outside the kernel. Only essential functions remain in the core kernel, improving system security and stability.
Layered architecture organizes the operating system into multiple layers. Each layer interacts with the one below it while providing services to the layer above.
| Architecture | Description | Advantage | Example |
|---|---|---|---|
| Monolithic | All services in kernel | High performance | Linux |
| Microkernel | Minimal kernel functions | Better security | Minix |
| Layered | OS structured in layers | Easier maintenance | THE OS |
These architectural approaches demonstrate how operating system designers organize internal modules to maintain performance, stability, and flexibility across different computing environments.
How OS Components Work Together
A computer rarely runs a single task in isolation. When a user launches an application, several internal subsystems coordinate to make that program run correctly. This coordination shows how the components of an operating system operate as a unified system rather than independent modules.
The process usually begins when the user opens an application such as a browser or text editor. The operating system receives the request and initiates the workflow that allows the program to start.
In most systems, the execution flow follows a structured sequence:
- Process management creates a new process entry for the application.
- Memory management allocates RAM so the program can load instructions and working data.
- File system management reads the executable files from storage.
- Device management prepares hardware interaction required by the application.
- I/O management handles input and output communication between the program and devices.
Each step occurs quickly, often within milliseconds. The OS coordinates these modules so applications start smoothly and system resources remain organized.
This sequence illustrates the components of an operating system functioning through coordinated OS modules interaction. Each subsystem performs a specific responsibility, yet the overall operating system structure allows them to operate together as a stable computing environment.
Interaction Between OS Components
| Component | Responsibility | Example |
|---|---|---|
| Process Management | Manage processes | Running applications |
| Memory Management | Allocate RAM | Loading software |
| File System | Manage files | Saving documents |
| Device Management | Control hardware | Printing |
| I/O Management | Handle input/output | Keyboard input |
| Storage Management | Manage disks | Data storage |
| Security | Protect system | User authentication |
Real World Examples of Operating System Components
Modern operating systems rely on the same internal principles even though their technical implementations differ. Regardless of the platform, the components of an operating system coordinate hardware resources and application execution.
Different operating systems implement these subsystems in slightly different ways:
- Windows uses a hybrid kernel architecture where internal modules manage process scheduling, memory allocation, and hardware communication through built-in operating system services.
- Linux relies on a modular kernel design that allows developers to add or remove components depending on the system environment. This flexibility supports strong OS functionality across servers, desktops, and embedded devices.
- macOS combines a Unix-based core with Apple’s graphical frameworks, allowing applications and system modules to coordinate hardware resources efficiently.
Despite these differences, the internal responsibilities remain largely consistent across platforms. Core modules continue to manage system resources and maintain stable operation.
In general, the components of an operating system across modern platforms perform similar roles:
- managing processes and scheduling CPU activity
- allocating memory resources to applications
- organizing files and storage systems
- coordinating hardware communication
- enforcing system security and access control
These real-world implementations show that the same structural concepts appear across Windows, Linux, and macOS. The internal modules may differ in design, but the components of an operating system continue to perform the essential tasks required for reliable computing.
Conclusion
Modern computers rely on a structured collection of system modules to maintain stability and efficiency. These modules form the components of an operating system, each responsible for managing a different aspect of system behavior.
Process management controls how programs execute on the CPU. Memory management regulates how RAM is allocated to active applications. File systems organize stored data, while device management coordinates communication with hardware components.
Additional modules handle input and output operations, storage allocation, and system security. Each subsystem performs a specialized role, yet they remain connected within the broader operating system structure.
Together, these modules create a stable computing environment where multiple applications can run simultaneously without interfering with one another.
Understanding the components of an operating system helps reveal how computers manage resources, coordinate hardware activity, and maintain reliable performance across different computing environments.
FAQs About Components of an Operating System
What are the main components of an operating system?
The main modules typically include process management, memory management, file system management, device management, input/output management, secondary storage management, and security. These subsystems form the components of an operating system responsible for coordinating system resources.
Why are OS components important?
Operating system modules manage CPU usage, memory allocation, storage access, and hardware communication. Without these subsystems, applications would not be able to interact with hardware safely or efficiently.
How do operating system components interact?
The components communicate through structured system calls and internal interfaces. Process management schedules programs, memory management allocates RAM, and device management handles hardware communication while maintaining system stability.
What is the role of process management?
Process management controls how programs run on the processor. It creates processes, schedules CPU usage, and ensures that multiple applications operate smoothly in a multitasking environment.
Are OS components the same in every operating system?
Most operating systems include similar functional modules even though their internal implementations differ. Windows, Linux, and macOS all rely on coordinated subsystems to manage system resources and application execution.
