Storage Area Network Definition: How SAN Works for Data Storage Systems

Storage area network (SAN) usage keeps climbing as enterprise data grows faster than most teams expect. Every system—apps, analytics, cloud workloads—adds more pressure on storage. Data no longer grows in a straight line. It spikes, bursts, and stretches infrastructure in ways older designs were never built to handle.

Traditional storage setups start to feel slow once workloads scale. Direct connections between servers and disks create limits that are hard to ignore. When several systems request data at the same time, performance drops. Latency creeps in, and access becomes unpredictable.

Scaling that kind of setup is rarely clean. Adding more disks or servers often leads to isolated storage pools. Each one needs its own management, its own configuration, and its own troubleshooting. Over time, everything becomes fragmented and harder to control.

A dedicated storage network changes how data flows. Instead of competing with regular network traffic, storage moves through its own optimized path. That separation keeps performance stable, even when workloads increase sharply.

That’s where a storage area network fits in. It connects servers to centralized storage using high-speed infrastructure built for heavy data access. According to IBM enterprise technology company, a storage area network is a dedicated high-speed network that provides access to consolidated block-level storage, improving performance and data management efficiency.

With a proper SAN setup, teams gain better control, faster access, and a system that scales without constant restructuring.

What is a Storage Area Network Definition

A storage area network is a dedicated infrastructure that links servers to shared storage through a high-speed network. It does not behave like a regular LAN. Instead of handling everyday communication, it focuses purely on storage traffic.

From a technical side, SAN works at the block level. Servers do not request files in the usual sense. They access raw data blocks, which allows the operating system to treat remote storage like a local disk. That small difference has a big impact on speed and responsiveness.

In real use, SAN acts as a bridge between compute systems and centralized storage arrays. Servers send requests through the storage fabric, and data moves back with minimal delay. Performance stays consistent, even under heavy load.

A clear contrast appears when comparing SAN with Direct Attached Storage (DAS). DAS ties storage directly to a single server. It works fine for simple setups but quickly becomes limiting. Sharing data across multiple servers is difficult, and scaling often requires manual changes.

A storage area network removes those limits. Multiple servers can access the same storage pool at the same time. Resources are used more efficiently, and expansion becomes easier to manage.

There’s also a difference between SAN and NAS. NAS works at the file level and uses standard network protocols. SAN focuses on block-level access with dedicated transport technologies. That makes SAN better suited for workloads that demand speed and consistency.

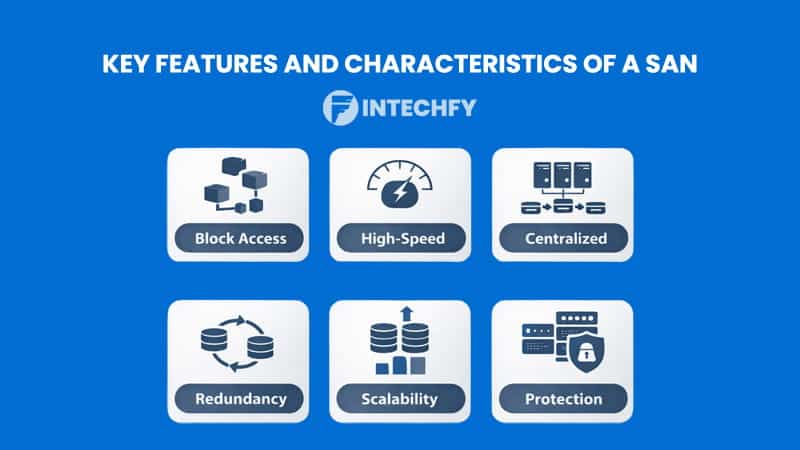

Key Features and Characteristics of a Storage Area Network (SAN)

Block-Level Access

A storage area network delivers data as blocks instead of files. That allows servers to interact with storage like it is directly attached. Applications can read and write data faster, which is critical for databases and virtualization systems.

Block-level access also reduces overhead. The system does not need to process file structures over the network, which keeps operations efficient and predictable.

Dedicated High-Speed Network

SAN uses specialized connections such as Fibre Channel or iSCSI. These technologies create a separate path for storage traffic. Data does not compete with regular network activity, so transfers stay stable.

That separation becomes important in busy environments. Even during peak usage, performance remains consistent. Large data transfers can happen without slowing down other operations.

Centralized Storage Management

All storage resources in a storage area network are managed from a central point. Administrators can allocate space, monitor usage, and adjust configurations without dealing with multiple isolated systems.

Central control simplifies operations. It reduces manual work and helps teams respond quickly to changing storage demands.

High Availability and Redundancy

Reliability is built into SAN design. Multiple paths connect servers to storage, and failover mechanisms handle disruptions automatically. If one path fails, another takes over without interrupting access.

This setup supports critical workloads where downtime is not acceptable. Systems stay online even when hardware issues occur.

Scalability and Flexibility

A storage area network allows storage to grow without major disruption. New capacity can be added while systems continue running. Resources can also be reassigned as workloads change.

That flexibility helps organizations adapt without rebuilding their infrastructure. Growth becomes smoother and more predictable.

Advanced Data Protection

SAN environments include features like snapshots, replication, and backup tools. These features protect data from loss and support recovery when issues happen.

Replication can copy data across locations, which improves disaster recovery planning. Combined with centralized management, it creates a strong foundation for secure storage operations.

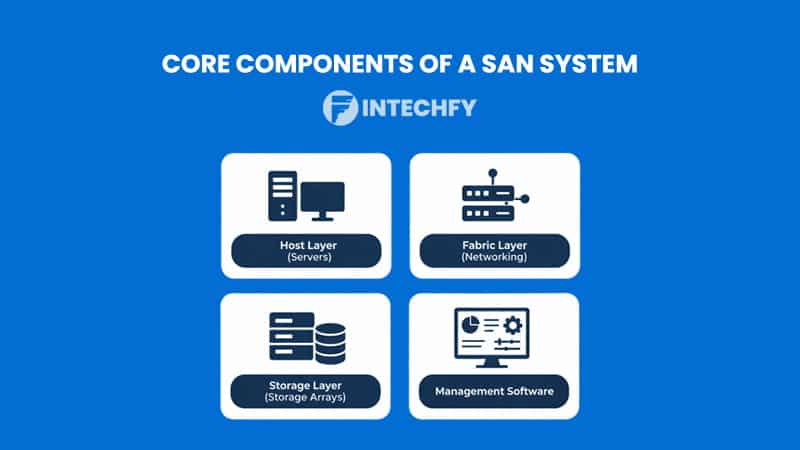

Core Components of a SAN System

A storage area network is not a single device. It’s a combination of layers working together to move data fast and keep everything stable. Each part has a clear role, and when one piece is misconfigured, performance drops quickly.

According to Cisco networking company, SAN architecture typically consists of interconnected storage devices, switches, and servers that work together through a dedicated network to deliver high-performance storage access.

Component	Function	Role in SAN
Host Servers	Generate requests	Access storage
SAN Switches	Route data	Connect devices
Storage Arrays	Store data	Central storage
Controllers	Manage I/O	Optimize performance
Cabling	Transfer data	High-speed connection

Host Layer (Servers)

At the top, servers act as clients inside the storage area network. They generate read and write requests based on application needs. Databases, virtual machines, and enterprise software all depend on these requests being processed quickly.

Each server connects to the storage fabric using specialized interfaces such as Host Bus Adapters (HBAs). These interfaces are designed for storage traffic, not general networking. That difference helps maintain speed and stability.

Servers do not deal with storage complexity directly. They simply request data blocks, and the system handles the rest behind the scenes.

Fabric Layer (Networking)

The fabric layer is where most of the movement happens. It connects servers and storage into one unified system. In a storage area network, this layer is built for speed, low latency, and reliability.

SAN Switches

SAN switches control how data flows between devices. They decide the best path for every request and keep traffic organized. Unlike regular network switches, they are optimized for storage workloads.

Efficient routing reduces delays and prevents congestion. In larger setups, multiple switches work together to create redundant paths, which improves reliability.

Cabling

Cabling plays a bigger role than it seems. Fibre Channel and high-speed Ethernet cables carry data across the network with minimal loss. The quality and configuration of these connections affect overall performance.

In a storage area network, stable cabling ensures consistent throughput. Poor connections can introduce latency and reduce efficiency across the entire system.

Storage Layer (Storage Arrays)

This layer is where data actually lives. Storage arrays provide centralized capacity that all servers can access.

Disk/Flash Arrays

Storage media can vary depending on needs. HDDs offer large capacity at a lower cost, while SSDs deliver faster performance. Many environments use a mix of both to balance speed and storage size.

A storage area network allows these resources to be pooled together. Instead of being tied to one server, storage becomes shared across multiple systems.

Controllers

Controllers manage how data is written, read, and distributed. They handle caching, load balancing, and input/output operations.

Without efficient controllers, even high-speed storage can feel slow. They play a key role in maintaining performance across the entire SAN environment.

Management Software

Management software ties everything together. It gives administrators a central view of the system, including performance metrics, storage allocation, and network health.

Through this layer, teams can adjust configurations, monitor usage, and optimize performance. In a storage area network, strong management tools make the difference between a smooth system and a difficult one.

How a Storage Area Network Works for High-Speed Data Storage

A storage area network works by moving data through a dedicated path built for speed. Every step in the process is designed to reduce delay and keep performance stable, even when multiple systems are active at the same time.

SAN Workflow for High-Speed Data Storage

Step	Process Stage	What Happens	Key Component Involved	Impact on Performance
1	Request Initiation	Server sends read/write request based on application demand	Host Servers (HBAs)	Fast request handling
2	Entry into SAN Fabric	Request enters dedicated storage network path	SAN Fabric	Reduced network congestion
3	Intelligent Routing	Switch selects the most efficient path to storage	SAN Switches	Low latency data routing
4	Block-Level Processing	Data is processed in block format, not file format	Storage Protocol Layer	Faster data access
5	High-Speed Transmission	Data travels via Fibre Channel or iSCSI	Network Protocols	Stable and high-speed transfer
6	Storage Access	Storage array processes request and retrieves data	Storage Arrays & Controllers	Efficient I/O operations
7	Data Delivery	Data is sent back to the server through optimized path	SAN Fabric	Minimal delay response
8	Monitoring & Optimization	Admin monitors and adjusts performance	Management Software	Sustained performance stability

Storage Request Initiation from Host Servers

Everything starts at the server level. Applications trigger requests when they need to read or write data. These requests are sent through dedicated interfaces connected to the SAN.

Instead of relying on standard networking, the server communicates directly with the storage fabric. This reduces overhead and keeps latency low.

Data Routing Through SAN Fabric

Once the request enters the network, SAN switches take over. They analyze the request and choose the fastest path to the storage device.

In a storage area network, routing decisions are critical. Efficient paths reduce delays and keep performance stable even when traffic increases.

Block-Level Data Processing

Data moves through the system as blocks rather than files. That allows faster processing since the system does not need to interpret file structures.

Servers treat storage like local disks, which improves speed and simplifies operations for applications.

High-Speed Data Transmission via Fibre Channel/iSCSI

Protocols such as Fibre Channel and iSCSI handle the actual data transfer. They are designed for high throughput and low latency.

A storage area network depends on these technologies to maintain consistent performance. Even large data transfers can happen quickly without disrupting other workloads.

Storage Response and Data Delivery

After processing the request, the storage system sends data back through the network. The same optimized paths are used to ensure quick delivery.

The server receives the data and continues its operation without noticeable delay.

Centralized Monitoring and Optimization

Administrators monitor the entire process using management software. They can track performance, detect issues, and adjust configurations when needed.

In a storage area network, visibility is key. Continuous monitoring helps maintain efficiency and prevents bottlenecks before they become serious problems.

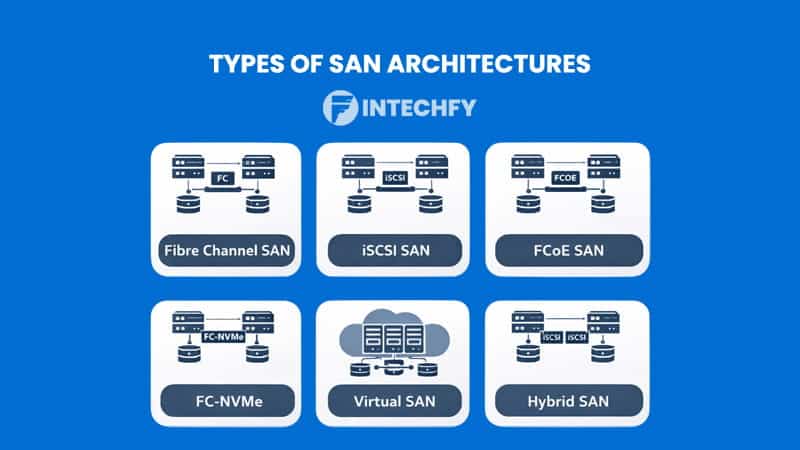

Types of Storage Area Network (SAN) Architectures

A SAN can be built in different ways depending on performance needs, budget, and existing infrastructure. Not every setup looks the same. Some focus purely on speed, while others balance cost and flexibility. Choosing the right architecture shapes how the entire system performs over time.

Main Types of SANs

Fibre Channel (FC) SAN

Fibre Channel remains the go-to option in large enterprise environments. It runs on a dedicated network designed specifically for storage traffic, which keeps performance consistent even under heavy workloads.

A storage area network based on Fibre Channel delivers very low latency and high throughput. It is often used for critical systems such as databases and financial platforms where delays are not acceptable.

iSCSI SAN (Internet Small Computer System Interface)

iSCSI takes a different approach by running over standard IP networks. That makes it more affordable and easier to deploy compared to Fibre Channel.

Many organizations choose this type of storage area network when cost becomes a concern. While it may not match Fibre Channel in raw performance, it still delivers solid results for most enterprise workloads.

Fibre Channel over Ethernet (FCoE) SAN

FCoE blends Fibre Channel with Ethernet infrastructure. Instead of maintaining separate networks, both storage and data traffic can run on the same physical cables.

This type of storage area network reduces hardware complexity while still maintaining strong performance. It works well in environments aiming to simplify infrastructure without sacrificing too much speed.

FC-NVMe (Non-Volatile Memory Express over Fibre Channel)

FC-NVMe is a newer development designed for modern workloads. It combines Fibre Channel with NVMe technology, allowing extremely fast access to flash storage.

Latency drops significantly, making this version of storage area network ideal for high-performance computing, analytics, and real-time processing.

Other Ways to Categorize SANs

Virtual SAN (VSAN)

VSAN divides a single physical SAN into multiple virtual networks. Each one can operate independently, which improves isolation and control.

A storage area network using VSAN helps organizations manage workloads more efficiently. Different departments or applications can run on separate virtual segments without interference.

Hybrid SAN

Hybrid setups combine multiple storage technologies, often mixing HDD and SSD within the same system. This approach balances cost and performance.

In a hybrid SAN, frequently accessed data can stay on faster storage, while less critical data sits on cheaper drives. That keeps the system efficient without overspending.

Common Storage Area Network (SAN) Topologies in Data Center Environments

Topology defines how devices connect inside a storage area network. The structure affects performance, scalability, and fault tolerance.

Switched Fabric (Star)

Switched fabric is the most widely used topology. All devices connect through switches, forming a flexible and scalable structure.

This design allows multiple paths between servers and storage. It improves performance and ensures that failures do not disrupt the entire system.

Core-Edge

Core-edge topology is common in large environments. A central core layer connects to multiple edge switches, which then connect to servers and storage.

This structure supports large-scale deployments. A storage area network using core-edge can handle high traffic while keeping management organized.

Point-to-Point

Point-to-point is the simplest form. A direct connection links a server to a storage device without intermediate switches.

It works for small setups but does not scale well. Expanding beyond a few devices quickly becomes impractical.

Cascaded/Ring

Cascaded or ring topology connects switches in a sequence. It allows gradual expansion without redesigning the entire network.

While flexible, it can introduce delays if data has to pass through multiple switches.

Mesh

Mesh topology connects devices through multiple paths. Every node can reach another through several routes.

A storage area network using mesh offers strong redundancy. If one path fails, others remain available, keeping the system operational.

Functions and Uses of Storage Area Network (SAN) in Enterprise Storage

A SAN plays a central role in modern enterprise infrastructure. It is not just about storing data. It also improves how data is accessed, managed, and protected.

Key Functions of SAN in Enterprise Storage

• Block-Level Data Access: Data is delivered directly as blocks, allowing faster interaction between servers and storage.
• High Performance and Low Latency: Systems handle read and write operations quickly, even under heavy workloads.
• Centralized Storage Management: Administrators manage all storage resources from a single control point.
• High Reliability and Availability: Redundant paths and failover systems keep operations running without interruption.
• Advanced Data Protection: Features like snapshots and replication help secure data and support recovery.
• Scalability: Capacity can grow without disrupting existing systems.

Key Uses of SAN in Enterprise Storage

• Enterprise Databases: Large databases rely on fast and stable storage to maintain performance.
• Virtualization Infrastructure: Virtual machines store data in a centralized system, improving efficiency and flexibility.
• Disaster Recovery (DR) and Backup: Data can be replicated and restored quickly in case of failure.
• Large-Scale File Storage and Video Editing: High-capacity storage supports media production and large file workflows.
• Email and Messaging Systems: Communication platforms depend on reliable storage to manage large volumes of data.

Real-World Examples of Storage Area Network (SAN)

In real environments, a SAN shows its value when systems need consistent speed and reliability. Large organizations rely on it to keep operations running smoothly without delays or unexpected slowdowns. Instead of dealing with scattered storage, everything sits in one controlled environment where access stays fast and predictable.

Many industries depend on SAN setups to handle heavy workloads. From finance to healthcare, the need for stable storage access continues to grow. A SAN makes it easier to support these demands without constantly rebuilding infrastructure.

Key Real-World Applications of SAN

• Virtual Desktop Infrastructure (VDI): VDI setups rely on centralized storage to deliver desktop environments to users. A SAN keeps performance stable even when many users log in at the same time.
• Virtualization Environments (VMware/Hyper-V): Running multiple virtual machines requires fast storage access. SAN allows each VM to read and write data without slowing others down.
• Healthcare Data Storage (EHR/PACS): Medical systems store sensitive data such as patient records and imaging files. A SAN ensures secure and fast access for doctors and staff.
• Enterprise Resource Planning (ERP) Systems: ERP platforms handle core business processes. Storage must remain responsive to avoid delays in operations like finance and supply chain.
• Banking Transaction Processing: Financial systems process thousands of transactions in seconds. A SAN supports low latency, which helps keep transactions accurate and fast.
• Disaster Recovery: Data replication across locations allows systems to recover quickly. SAN helps maintain availability even when failures occur.

Common Use Cases Explained

• Media Production: Video editing teams work with large files that need constant access. SAN keeps workflows smooth without long loading times.
• Data Archiving and Backup: Long-term storage requires stability and organization. A storage area network allows data to be stored securely while remaining accessible when needed.
• Centralized Storage Consolidation: Instead of scattered storage systems, organizations combine everything into one structure. That reduces complexity and improves control.

Advantages and Limitations of SAN Solutions

A storage area network brings clear benefits, but it also comes with trade-offs. Understanding both sides helps determine whether it fits a specific environment.

Advantages of SAN Solutions

• High Performance: Data moves quickly through dedicated paths. Large workloads can run without noticeable delays.
• Centralized Management: All storage resources are controlled from a single point. This reduces manual work and simplifies monitoring.
• Reliability & Fault Tolerance: Redundant paths keep systems running even when hardware fails. Downtime becomes less likely.
• Improved Resource Utilization: Storage is shared across systems, so capacity is used more efficiently.

A storage area network is often chosen for environments where performance and stability are non-negotiable.

Limitations of SAN Solutions

• High Costs: Hardware, software, and setup require a significant investment.
• Complexity: Configuration and maintenance need experienced administrators.
• Storage Management Difficulty: As systems grow, managing resources can become more challenging.
• Performance Bottlenecks: Poor configuration can still lead to slowdowns.
• Overhead for Small Entities: Smaller organizations may not need this level of infrastructure.

Differences Between SAN and Other Types of Computer Networks

A storage area network serves a very specific purpose compared to other computer network types. While most computer networks focus on communication, SAN focuses purely on storage access.

• Personal Area Network (PAN): Used for short-range personal devices like Bluetooth connections.
• Local Area Network (LAN): Connects devices within a building for general communication.
• Wireless Local Area Network (WLAN): Similar to LAN but without cables, using Wi-Fi.
• Metropolitan Area Network (MAN): Covers a city-scale area and connects multiple networks.
• Wide Area Network (WAN): Spans large distances, including the internet.
• Campus Area Network (CAN): Links multiple buildings within a campus environment.
• Virtual Private Network (VPN): Provides secure remote access over public networks.

A SAN stands apart by focusing only on high-speed data access rather than general connectivity.

Conclusion

A storage area network has become a core part of modern enterprise infrastructure. It addresses performance issues, simplifies storage management, and supports growing data demands without constant redesign.

Organizations dealing with large workloads benefit the most. Faster access, centralized control, and better reliability make SAN a strong choice for critical systems.

Looking ahead, data growth will continue to push infrastructure limits. Solutions like SAN remain relevant as businesses search for ways to handle increasing demand without sacrificing performance or stability.

FAQs About Storage Area Network
